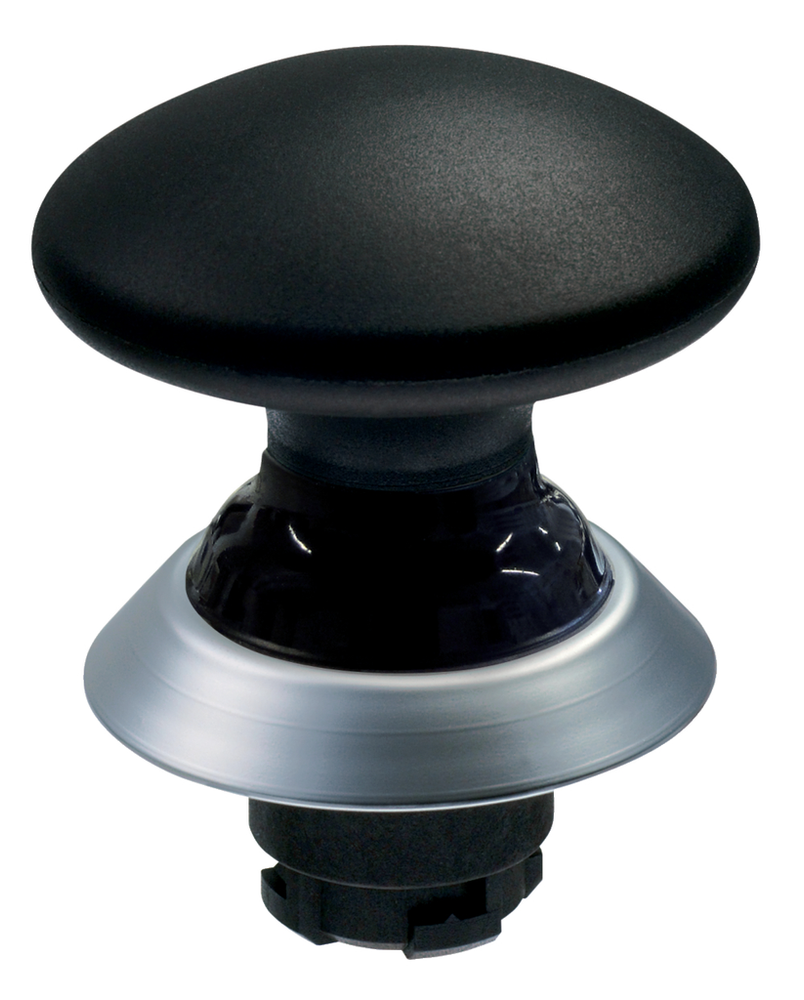

Schmersal 101163579
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
NDP50GR/SW
Schmersal 101163579 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Ambient conditions
- Ambient temperature
- -25 ... +80 °C
- Degree of protection
- IP67 | IP69K
- Resistance to vibrations
- 10 - 150 Hz (0.5 mm / 5 g)
- Restistance to shock
- 50 g
Approvals - Standards
- Certificates
- BG | cULus | IPA
Electrical data
- Number of contact elements, maximum
- 3
- Switching frequency
- 1,000 /h
General data
- Colour of the bellows
- Black
- Colour of the front ring
- Silver
- Colour of the operating element
- Black
- Design
- Large
- Gross weight
- 50 g
- Installation conditions (mechanical)
- arbitrarily
- Material of the bellows
- Silicone
- Material of the front ring
- ABS, chrome-plated
- Material of the operators
- ABS
- Sealing type
- Membrane | Lip gaskets
- Standards
- EN IEC 60947-5-1 | EN IEC 60947-1
- Versions
- Mushroom impact button
General data - Features
- Fully insulated
- Yes
- Mounting flange
- Yes
Mechanical data
- Actuating force, approx.
- 2 N
- Actuating stroke
- 5 mm
- Mechanical life, minimum
- 1,000,000 Operations
- Mounting
- Mounting flange EFM
- Tightening torque of the screw
- 0.6 Nm
Mechanical data - Dimensions
- diameters for the actuating heads
- 50 mm
- Height
- 45 mm
- Mounting diameter
- 22.3 mm
- Spacing
- 50 x 50 mm
- Thickness of the front panel, maximum
- 6 mm
- Thickness, of the front panel, minimum
- 1.5 mm
Specifications
- Height
- 45 mm
