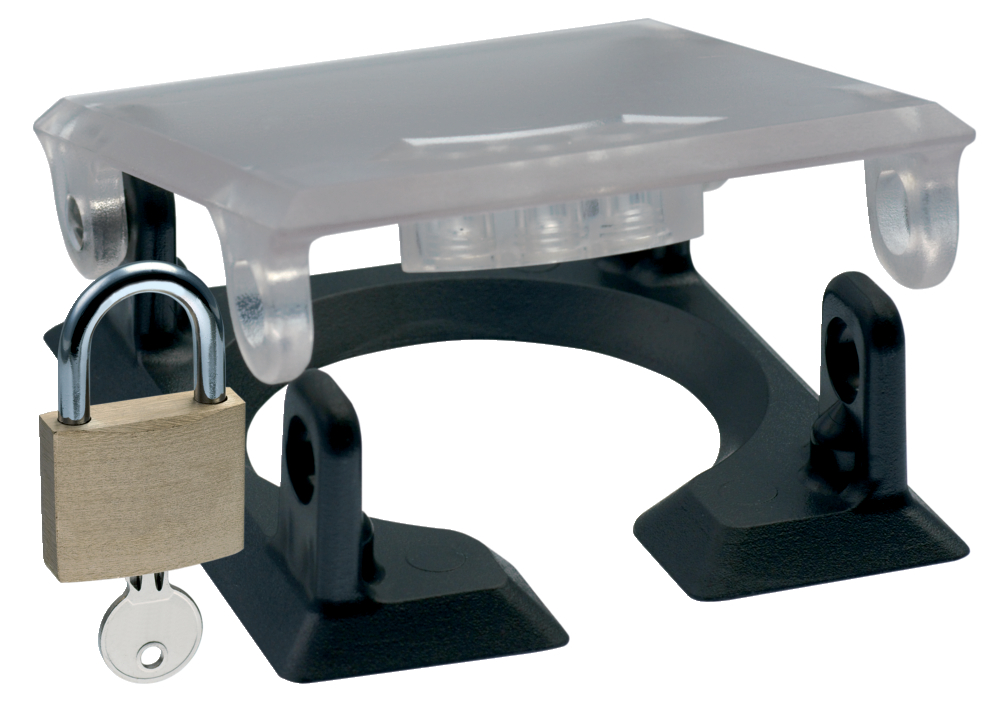

Schmersal 101160849
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
NWSP32WS
Schmersal 101160849 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Ambient conditions
- Ambient temperature
- -25 ... +80 °C
- Resistance to vibrations
- 10 - 150 Hz (0.5 mm / 5 g)
- Restistance to shock
- 50 g
Approvals - Standards
- Certificates
- BG
General data
- Colour of the bottom part of the enclosure
- White
- Colour of the upper part of the enclosure
- Transparent
- Enclosure material
- Plastic
- Gross weight
- 40 g
- Installation conditions (mechanical)
- arbitrarily
- Material of the housing cover
- Plastic
- Note
- For 3 position versions
- Versions
- Assembly housing
General data - Features
- Fully insulated
- Yes
Mechanical data
- Actuating force, approx.
- 0.2 N
- Mechanical life, minimum
- 100,000 Operations
- Mounting
- Screws | Mounted from the back. For this purpose there are 4 bore holes of 3.5 mm diameter, 12 mm deep for self-cutting screws. The grid measurement in 56 x 60 mm.
Mechanical data - Dimensions
- Height
- 30.5 mm
- Length x Width x Height
- Grid dimensions: 74 mm x 85 mm
- Width
- 85 mm
Scope of delivery
- Note (scope of delivery, number and type)
- Padlocks not supplied.
Specifications
- Height
- 30.5 mm
- Length
- 74 mm
- Width
- 85 mm
