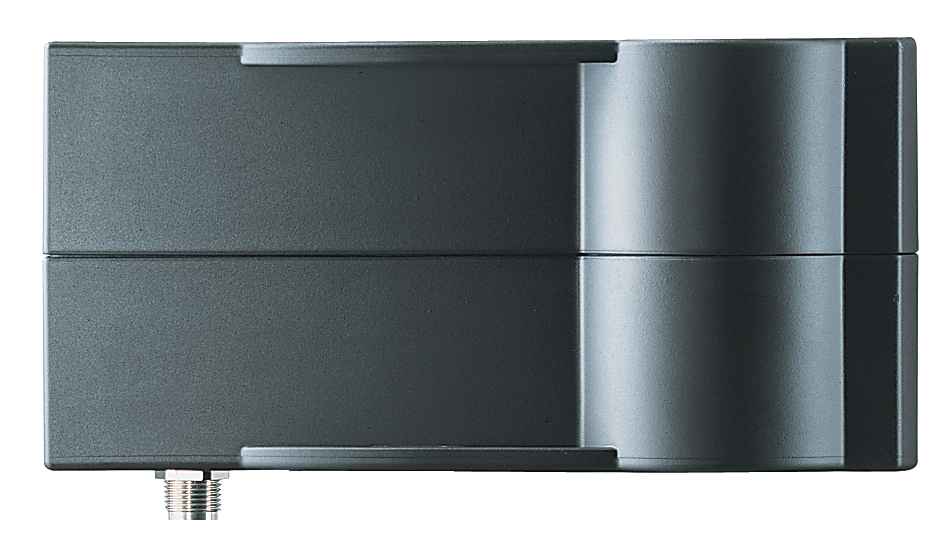

Schmersal 101158928
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
USP-100-M24BS
Schmersal 101158928 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Ambient conditions
- Ambient temperature
- -20 ... +60 °C
- Degree of protection
- IP54
Approvals - Standards
- Certificates
- cULus
Electrical data
- Operating current
- 180 mA
- Operating voltage
- 24 VDC -10 % / +15 %
- Rated operating voltage
- 24 VDC
Electrical data - Electromagnetic compatibility (EMC)
- EMC rating
- IEC 61000-6-2 | EN 12016
- Interfering radiation
- EN 50081-2 | EN 12015
General data
- Coding
- Binary
- Enclosure material
- Ultramid
- Gross weight
- 6,425 g
Mechanical data
- Conveying speed, maximum
- 6 m/s
- Repeat accuracy
- 1 mm
- Travel distance, maximum
- 130 m
Note
- Note (General)
- The specifications with regard to the protection class are related to the entire USP system. Please observe the information contained in the mounting instructions To fit the USP system elements in the elevator shaft, only conventional tools are required.
- Note (Interface)
- Suitable for the following controls: Böhnke + Partner, Kollmorgen, KW-Aufzugstechnik, for operation with parallel interface PI
Scope of delivery
- Scope of delivery
- The USP kit comprises: transmitter + receiver, 2 dampers, 1 vibration protection, mounting materials, documentation, signal wire, the transmitter connecting cable and the receiver cable are related to the respective application and must be ordered separately.
