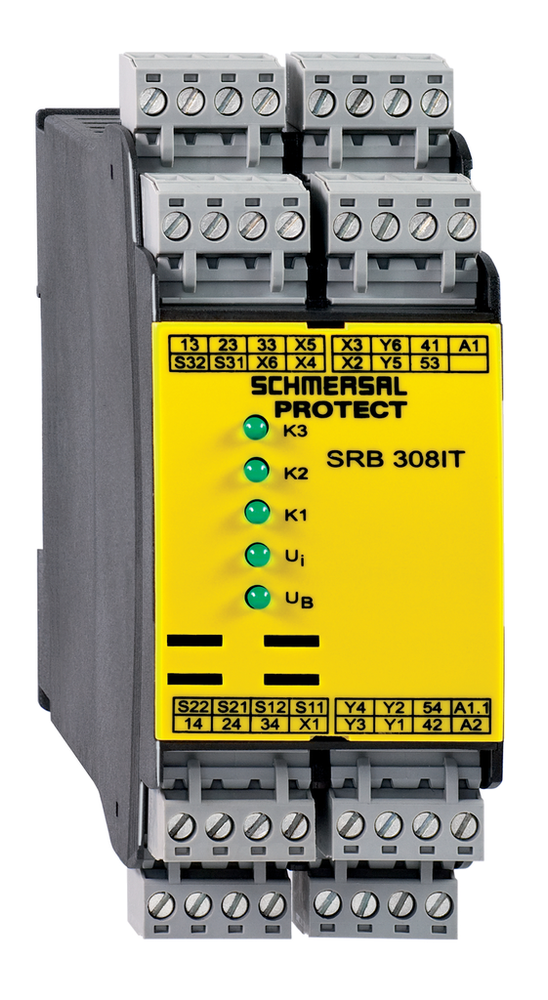

Schmersal 101158202

Ambient conditions

• Ambient temperature
  • -25 ... +45 °C
• Degree of protection of clips or terminals
  • IP20
• Degree of protection of the enclosure
  • IP40
• Degree of protection of the mounting space
  • IP54
• Resistance to vibrations
  • 10 ... 55 Hz, Amplitude 0.35 mm
• Restistance to shock
  • 30 g / 11 ms
• Storage and transport temperature, maximum
  • +85 °C
• Storage and transport temperature, minimum
  • -40 °C

Ambient conditions - Insulation values

• Degree of pollution
  • 2
• Overvoltage category
  • III
• Rated impulse withstand voltage U
  • 4 kV

Approvals - Standards

• Certificates
  • cULus

Electrical data

• Contact resistance, maximum
  • 0.1 Ω
• Drop-out delay in case of "emergency stop", maximum
  • 15 ms
• Electrical power consumption
  • 3 W
  • 3 VA
• Frequency range
  • 50 Hz | 60 Hz
• Material of the contacts, electrical
  • AgSn0, Ag-Ni, self-cleaning, positive drive
• Note (Contact resistance)
  • in new state
• Operating current
  • 125 mA
• Operating voltage
  • 230 VAC -15 % / +10 %
• Pull-in delay at automatic start, maximum, typically
  • 60 ms
• Pull-in delay at RESET, typically
  • 200 ms
• Rated AC voltage for controls, 50 Hz, minimum
  • 215 VAC
• Rated AC voltage for controls, 60 Hz, minimum
  • 215 VAC
• Rated control voltage at AC 50 Hz, maximum
  • 253 VAC
• Rated control voltage at AC 60 Hz, maximum
  • 253 VAC
• Rated operating voltage
  • 230 VAC
• Utilisation category AC-15
  • 1.5 A
  • 230 VAC
• Utilisation category DC-13
  • 24 VDC
  • 1.2 A

Electrical data - Digital inputs

• Conduction resistance, maximum
  • 40 Ω

Electrical data - Electromagnetic compatibility (EMC)

• EMC rating
  • EMC-Directive

General data

• Climatic stress
  • EN 60068-2-78
• Enclosure material
  • Glass-fibre reinforced thermoplastic, ventilated
• Gross weight
  • 480 g
• Standards
  • EN IEC 62061 | EN ISO 13849-1 | EN IEC 60947-5-1 | EN IEC 60947-5-3 | EN IEC 60947-5-5 | EN IEC 61508 | EN IEC 60204-1 | EN IEC 60947-1

General data - Features

• Automatic reset function
  • Yes
• Cross-circuit detection
  • Yes
• Earth connection detection
  • Yes
• Electronic Fuse
  • Yes
• Feedback circuit
  • Yes
• Integral system diagnostics, status
  • Yes
• Number of auxiliary contacts
  • 2
• Number of LEDs
  • 5
• Number of normally closed (NC)
  • 2
• Number of safety contacts
  • 3
• Number of signalling outputs
  • 6
• Number of undelayed semi-conductor outputs with signaling function
  • 6
• Removable Terminals
  • Yes
• Reset edge detection
  • Yes
• Start input
  • Yes
• Stop-Category
  • 0
• Wire breakage detection
  • Yes

Mechanical data

• Mechanical life, minimum
  • 10,000,000 Operations
• Mounting
  • Snaps onto standard DIN rail to EN 60715

Mechanical data - Connection technique

• Cable section, maximum
  • 2.5 mm²
• Cable section, minimum
  • 0.25 mm²
• Terminal designations
  • IEC/EN 60947-1
• Termination
  • rigid or flexible | Screw terminals M20 x 1.5
• Tightening torque of Clips
  • 0.6 Nm

Mechanical data - Dimensions

• Depth
  • 121 mm
• Height
  • 100 mm
• Width
  • 45 mm

Note

• Note (General)
  • Inductive loads (e.g. contactors, relays, etc.) are to be suppressed by means of a suitable circuit.

Other data

• Note (applications)
  • Guard system | Pull-wire emergency stop switches | Safety light curtain | Emergency stop button

Safety classification

• Category, Stop 0
  • 4
• Common Cause Failure (CCF), minimum
  • 65
• Diagnostic Coverage (DC) Level, Stop 0
  • ≥ 99 %
• Mission time
  • 20 Year(s)
• Performance Level, stop 0, up to
  • e
• PFH value, Stop 0
  • 2.00 x 10⁻⁸ /h
• Safety Integrity Level (SIL), Stop 0, suitable for applications in
  • 3
• Standards
  • EN IEC 60947-5-1 | EN IEC 61508

Specifications

• Depth
  • 121 mm
• Height
  • 100 mm
• Width
  • 45 mm

Status indication

• Indicated operating states
  • Position relay K2 | Position relay K1 | Internal operating voltage U | Position relay K3

Wiring example

• Note (Wiring diagram)
  • The wiring diagram is shown with guard doors closed and in de-energised condition. | The ISD tables (Intergral System Diagnostics) for analysis of the fault indications and their causes are shown in the appendix. | Relay outputs: Suitable for 2 channel control, for increase in capacity or number of contacts by means of contactors or relays with positive-guided contacts. | The control recognises cross-short, cable break and earth leakages in the monitoring circuit. | Connect potential p-type outputs of safety light grids/curtains to S12/S22. The devices must have the same reference potential. | 2 channel control shown for a guard-door monitor with two contacts, of which at least one contact has positive break, with external reset button (R) and feedback circuit (H2). (example without cross-wire monitoring) | For 2-channel control with cross-wire monitoring, connect the NC contact to S11/S12 and S31/S32 and bridge S21/S22 | For 1-channel control, connect NC contact to S11/S12 and bridge S21/S22 and S31/S32 | "Start function / Reset button: The function "trailing edge" is programmed by means of the "AF" switch located underneath the housing cover (switch position = 1). The automatic start is programmed by bridging terminals X3/X5 and by switching the "AF" switch to 0. The time offset between the channels is approx. 100 ms. An endless time offset between the channels 1 and 2 is programmed by bridging the terminals X3/X6." | F1 = Hybrid fuse | F2 = Fuse for signalling outputs
