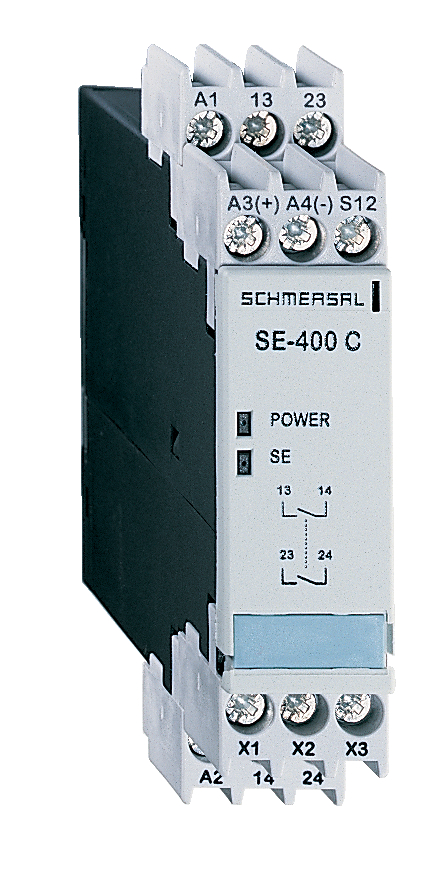

Schmersal 101153920

Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Schmersal 101153920 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Ambient conditions
- Ambient temperature
- +5 ... +55 °C
- Degree of protection of clips or terminals
- IP20
- Degree of protection of the enclosure
- IP40
- Degree of protection of the mounting space
- IP54
- Resistance to vibrations
- 10 … 55 Hz, amplitude 0.15 mm
Ambient conditions - Insulation values
- Degree of pollution
- 2
- Overvoltage category
- III
- Rated impulse withstand voltage U
- 4 kV
Approvals - Standards
- Certificates
- TÜV | cULus
Electrical data
- Electrical power consumption, maximum
- 4 W
- Operating current
- 150 mA
- Operating voltage
- 24 VDC -10 % / +20 %
- Rated AC voltage for controls at DC minimum
- 21.6 VDC
- Rated control voltage at DC, maximum
- 28.8 VDC
- Rated operating voltage
- 24 VDC
- Time to readiness, maximum
- 32 ms
- Utilisation category AC-15
- 230 VAC
- 2 A
- Utilisation category DC-13
- 24 VDC
- 3 A
Electrical data - Electromagnetic compatibility (EMC)
- EMC rating
- EMC-Directive
General data
- Climatic stress
- EN ISO 13856-2
- Enclosure material
- Plastic, PE (Black), Crastin (Grey)
- Gross weight
- 184 g
- Reaction time, maximum
- 32 ms
- Standards
- EN ISO 13849-1 | EN ISO 13850
General data - Features
- Automatic reset function
- Yes
- Cross-circuit detection
- Yes
- Earth connection detection
- Yes
- Electronic Fuse
- Yes
- Feedback circuit
- Yes
- Integral system diagnostics, status
- Yes
- Number of LEDs
- 2
- Number of safety contacts
- 2
- Number of signalling outputs
- 1
- Number of undelayed semi-conductor outputs with signaling function
- 1
- Reset after disconnection of supply voltage
- Yes
- Reset edge detection
- Yes
- Start input
- Yes
- Stop-Category
- 0
- Wire breakage detection
- Yes
Mechanical data
- Mechanical life, minimum
- 30,000,000 Operations
- Mounting
- Snaps onto standard DIN rail to EN 60715
Mechanical data - Connection technique
- Cable section, maximum
- 2 x 1.5 mm²
- Length of cable
- 200 m
- Note (Cable section)
- All indications including the conductor ferrules.
- Termination
- Screw terminals M20 x 1.5
Mechanical data - Dimensions
- Depth
- 121 mm
- Height
- 100 mm
- Width
- 22.5 mm
Note
- Note (General)
- The overall machine safety depends on the professional mounting and installation of the safety monitoring module and the signal transmitter, as well as on the correct and professional electrical connection of the components. | If there it any risk whatsoever, the machine may not be restarted.
Other data
- Note (applications)
- Safety edges
Safety classification
- Category
- 4
- Control category to EN954
- 4
- Mission time
- 20 Year(s)
- Note (PFH-value)
- up to max. 50,000 switching cycles/year
- Performance Level, up to
- e
- PFH value
- 2.47 x 10⁻⁸ /h
Specifications
- Depth
- 121 mm
- Height
- 100 mm
- Width
- 22.5 mm
Status indication
- Indicated operating states
- Safety edge function
Wiring example
- Note (Wiring diagram)
- A Start-Reset-Taster (S) can optionally be connected to the feedback circuit. | Both re-initialisation and auto-reset must comply with the requirements of EN 1760-2 (diagram A2, A3). | The wiring diagram is shown for the de-energised condition. | Monitoring the safety edges SE 40 / SE 70 with a safety monitoring unit SE-400C up to PL e and Category 4. | The feedback circuit monitors the position of the contactors KA and KB.
