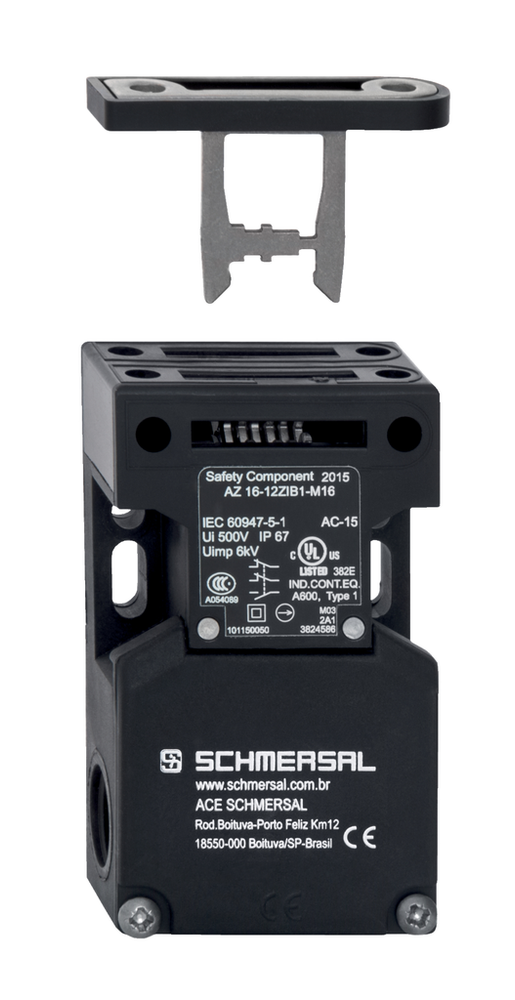

Schmersal 101150623
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
AZ 16-12ZIB1-M20
Schmersal 101150623 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Ambient conditions
- Ambient temperature, maximum
- +80 °C
- Ambient temperature, minimum
- -30 °C
- Degree of protection
- IP67 to EN 60529
Ambient conditions - Insulation value
- Rated impulse withstand voltage U
- 6 kV
- Rated insulation voltage U
- 500 V
Approval - Standards
- Certificates
- TÜV | EAC
Electrical data
- Switching element
- NO contact, NC contact
- Switching principle
- Creep circuit element
- Thermal test current
- 10 A
Electrical data - Auxiliary contacts
- Current, Utilisation category AC-15
- 4 A
- Current, Utilisation category DC-13
- 4 A
Electrical data - Safety contacts
- Current, Utilisation category AC-15
- 4 A
- Current, Utilisation category DC-13
- 4 A
- Voltage, Utilisation category AC-15
- 230 VAC
- Voltage, Utilisation category DC-13
- 24 VDC
General data
- Coding level according to ISO 14119
- High
- Enclosure material
- Plastic, glass-fibre reinforced thermoplastic, self-extinguishing
- Gross weight
- 156 g
- Material of the actuator
- Stainless steel
- Material of the contacts, electrical
- Silver
General data - Features
- Ejection force
- Yes
- Number of auxiliary contacts
- 1
- Number of safety contacts
- 2
Mechanical data
- Actuating radius, minimum
- 250 mm
- Actuating speed, maximum
- 2 m/s
- Actuator
- straight | rigid
- Mechanical life, minimum
- 1,000,000 Operations
- Positive break force, minimum
- 20 N
- positive break travel
- 8 mm
Mechanical data - Connection technique
- Cable section, maximum
- 2.5 mm²
- Cable section, minimum
- 0.75 mm²
- Terminal Connector
- Screw terminals
Mechanical data - Dimensions
- Height of sensor
- 90 mm
- Length of sensor
- 30 mm
- Width of sensor
- 52 mm
Safety appraisal
- Mission Time
- 20 Year(s)
- Standards
- BG-GS-ET-15 | EN 60947-5-1
Safety appraisal - Safety outputs
- B10d Normally-closed contact (NC)
- 2,000,000 Operations
- B10d Normally open contact (NO)
- 1,000,000 Operations
- Note (B10d Normally open contact (NO))
- at 10% I | and ohmic load
Scope of delivery
- Delivery scope of Mounting material
- Tamperproof screws
- Included in delivery
- Slot sealing plugs
