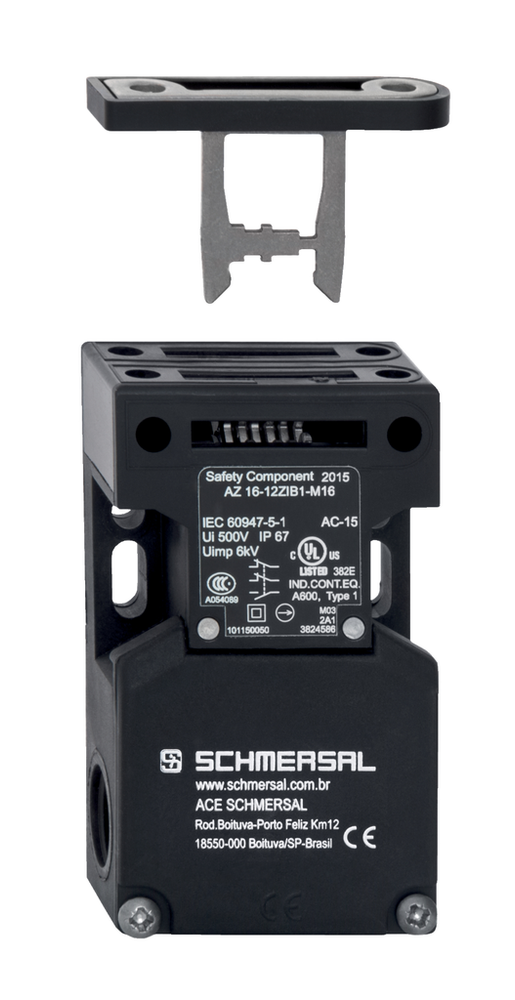

Schmersal 101150057

Ambient conditions

• Ambient temperature, maximum
  • +80 °C
• Ambient temperature, minimum
  • -30 °C
• Degree of protection
  • IP67 to EN 60529

Ambient conditions - Insulation value

• Rated impulse withstand voltage U
  • 6 kV
• Rated insulation voltage U
  • 500 V

Approval - Standards

• Certificates
  • TÜV | EAC

Electrical data

• Switching element
  • Opener (NC)
• Switching principle
  • Creep circuit element
• Thermal test current
  • 10 A

Electrical data - Safety contacts

• Current, Utilisation category AC-15
  • 4 A
• Current, Utilisation category DC-13
  • 4 A
• Voltage, Utilisation category AC-15
  • 230 VAC
• Voltage, Utilisation category DC-13
  • 24 VDC

General data

• Coding level according to ISO 14119
  • High
• Enclosure material
  • Plastic, glass-fibre reinforced thermoplastic, self-extinguishing
• Gross weight
  • 174 g
• Material of the actuator
  • Stainless steel
• Material of the contacts, electrical
  • Silver

General data - Features

• Ejection force
  • Yes
• Number of safety contacts
  • 3

Mechanical data

• Actuating radius, minimum
  • 250 mm
• Actuating speed, maximum
  • 2 m/s
• Actuator
  • straight | rigid
• Mechanical life, minimum
  • 1,000,000 Operations
• Positive break force, minimum
  • 30 N
• positive break travel
  • 8 mm

Mechanical data - Connection technique

• Cable section, maximum
  • 2.5 mm²
• Cable section, minimum
  • 0.75 mm²
• Note (Cable section)
  • All indications about the cable section are including the conductor ferrules.
• Terminal Connector
  • Screw terminals

Mechanical data - Dimensions

• Height of sensor
  • 90 mm
• Length of sensor
  • 30 mm
• Width of sensor
  • 52 mm

Safety appraisal

• Mission Time
  • 20 Year(s)
• Standards
  • EN ISO 13849-1

Safety appraisal - Safety outputs

• B10d Normally-closed contact (NC)
  • 2,000,000 Operations

Scope of delivery

• Delivery scope of Mounting material
  • Tamperproof screws
• Included in delivery
  • Slot sealing plugs
