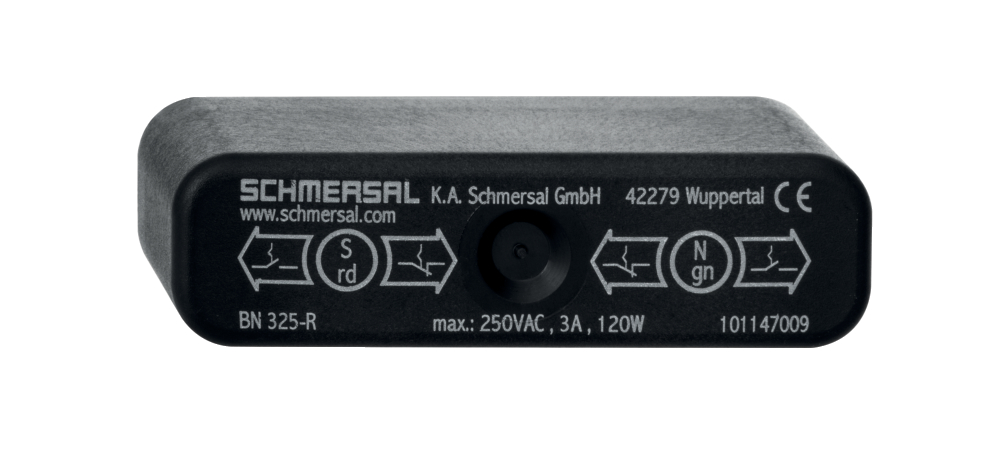

Schmersal 101147106

Accessory

• Recommendation (actuator)
  • BP 10 S | 2x BP 10 S | BP 15 S | BP 34 S | BP 20 S | BP 31 S | BP 11 S | 2x BP 11 S | BP 12 S | BP 21 S | 2x BP 21 S | BP 10 N | 2x BP 10 N | BP 15 N | 2 x BP 15/2 N | 2x BP 15/2 S | BP 34 N | BP 20 N | BP 31 N | BP 11 N | 2x BP 11 N | BP 12 N | 2x BP 12 N | 2x BP 12 S | BP 21 N | 2x BP 21 N | BE 20 | BE 20 N(S) ST 24VDC | BE 20 N(S) 48VDC
• Recommendation (actuator, lift switchgear)
  • BP 10 | 2 x BP 15/2 | 2 x BP 10 | BP 15 | BP 34

Ambient conditions

• Ambient temperature
  • -25 ... +70 °C
• Degree of protection
  • IP67
• Resistance to vibrations
  • 10 … 55 Hz, amplitude 1 mm
• Restistance to shock
  • 50 g / 11 ms

Electrical data

• Bounce duration, maximum
  • 0.6 ms
• Bounce duration, minimum
  • 0.3 ms
• Switching capacity, maximum
  • 120 VA
• Switching current, maximum
  • 3 A
• Switching element
  • bistable contact
• Switching frequency, maximum
  • 300 Hz
• Switching voltage, maximum
  • 250 VAC

Electrical data - Digital Output

• Design of control elements
  • Reed contacts

General data

• Enclosure material
  • Glass-fibre, reinforced thermoplastic
• Gross weight
  • 93 g
• Housing construction form
  • rectangular
• Working principle
  • Magnetic drive

General data - Features

• Integral system diagnostics, status
  • Yes
• Latching
  • Yes
• Number of snap-in contacts
  • 1
• Suitable for elevators
  • Yes

Mechanical data

• Actuating element
  • Magnet
• Actuating panels
  • front side
• Actuating speed, maximum
  • 18 m/s
• Mechanical life, minimum
  • 1,000,000,000 Operations
• Mounting
  • rear with 2 threaded bolts
• Repeat accuracy R
  • 0.3 mm

Mechanical data - Connection technique

• Length of cable
  • 1 m
• Termination
  • Cable outlet left and 2 shielding plates with LED

Mechanical data - Dimensions

• Height of sensor
  • 26 mm
• Length of sensor
  • 24 mm
• Width of sensor
  • 85 mm

Mechanical data - Switching distances according EN IEC 60947-5-3

• Note (Switching distance Sn)
  • Actuating distance up to 55 mm depending on actuating magnet and version. The specified switching distances are applicable for the actuation of individually mounted components without ferromagnetic influence. A change of the distance, either positive or negative, is possible due to ferromagnetic influences. The mutual interference between multiple actuating magnets must be observed.
• Switching distance S
  • 5 mm … 55 mm | 2 x BP 21S = 20 ... 55 mm | BP 34S = 10 ... 25 mm | BE 20 = 20 mm | BP 10N = 10 mm | BP 10S = 10 mm | 2 x BP 10N = 15 mm | 2 x BP 10S = 15 mm | BP 15N = 12 mm | BP 15S = 12 mm | 2 x BP 15/2N = 17 mm | 2 x BP 15/2S = 17mm | BP 34N = 10 ... 25mm | BP 20N = 5 ... 20 mm | BP 20S = 5 ... 20 mm | BP 31N = 5 ... 20 mm | BP 31S = 5 ... 20 mm | BP 11N = 10 mm | BP 11S = 10 mm | 2 x BP 11N = 20 mm | 2 x BP 11S = 20 mm | BP 12N = 15 mm | BP 12S = 15 mm | 2 x BP 12N = 10 ... 25 mm | 2 x BP 12S = 10 ... 25 mm | BP 21N = 15 ... 40 mm | BP 21S = 15 ... 40 mm | 2 x BP 21N = 20 ... 55 mm | BE 20N = 15 mm | BE 20S = 15 mm

Note

• Note (General)
  • The opening and closing functions depend on the direction of actuation, the actuating magnets and the polarity of the actuating magnets.

Scope of delivery

• Scope of delivery
  • Actuator must be ordered separately.
