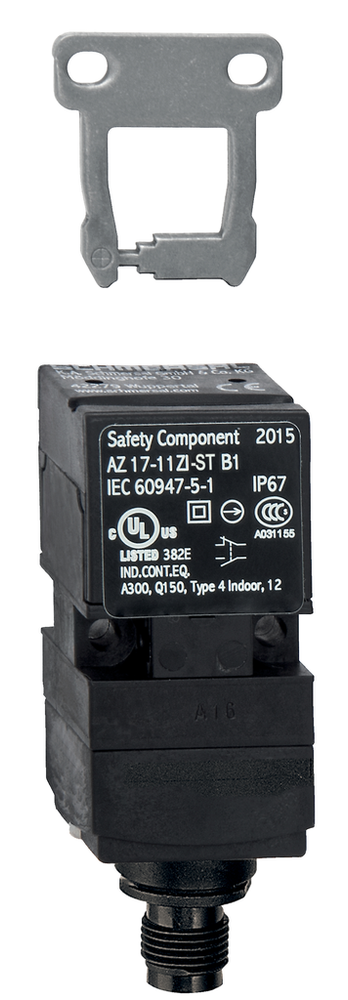

Schmersal 101144076

Ambient conditions

• Ambient temperature
  • -30 ... +80 °C
• Degree of protection
  • IP67
• Permissible installation altitude above sea level, maximum
  • 2,000 m
• Storage and transport temperature, maximum
  • +85 °C
• Storage and transport temperature, minimum
  • -30 °C

Ambient conditions - Insulation values

• Degree of pollution
  • 3
• Overvoltage category
  • III
• Rated impulse withstand voltage U
  • 4 kV
• Rated insulation voltage U
  • 250 VAC

Approvals - Standards

• Certificates
  • BG | cULus

Electrical data

• Material of the contacts, electrical
  • Silver
• Required rated short-circuit current
  • 1,000 A
• Switching element
  • NO contact, NC contact
• Switching frequency
  • 2,000 /h
• Switching principle
  • slow action, positive break NC contact
• Thermal test current
  • 10 A

Electrical data - Auxiliary contacts

• Current, Utilisation category AC-15
  • 4 A
• Current, Utilisation category DC-13
  • 4 A
• Voltage, Utilisation category AC-15
  • 230 VAC
• Voltage, Utilisation category DC-13
  • 24 VDC

Electrical data - Safety contacts

• Current, Utilisation category AC-15
  • 4 A
• Current, Utilisation category DC-13
  • 4 A
• Voltage, Utilisation category AC-15
  • 230 VAC
• Voltage, Utilisation category DC-13
  • 24 VDC

General data

• Coding level according to EN ISO 14119
  • High
• Enclosure material
  • Plastic, glass-fibre reinforced thermoplastic, self-extinguishing
• Gross weight
  • 100 g
• Material of the actuator
  • Stainless steel
• Standards
  • EN ISO 13849-1 | EN ISO 14119 | EN IEC 60947-5-1
• Working principle
  • electromechanical

General data - Features

• Number of actuating directions
  • 2
• Number of auxiliary contacts
  • 1
• Number of cable glands
  • 1
• Number of safety contacts
  • 1

Mechanical data

• Actuating speed, maximum
  • 2 m/s
• Latching force
  • 5 N
• Mechanical life, minimum
  • 1,000,000 Operations
• Mounting
  • Screws
• Positive break force per NC contact, minimum
  • 17 N
• Positive break travel
  • 11 mm
• Type of the fixing screws
  • 2x M5

Mechanical data - Connection technique

• Termination
  • Connector plug M12, 4-pole, (A-coding)

Mechanical data - Dimensions

• Height of sensor
  • 85 mm
• Length of sensor
  • 30 mm
• Width of sensor
  • 30 mm

Note

• Note (General)
  • The axis of the hinge must be 10 mm above and in a parallel plane to the top surface of the safety switch. | minimum actuating radius on rotating guard systems via the narrow edge of the actuator 140 mm | minimum actuating radius on hinged guards in line with the plane of the actuator 200 mm | The actuator is not available separately.

Safety classification

• Mission time
  • 20 Year(s)
• Standards
  • EN IEC 60947-5-1

Safety classification - Safety outputs

• B
  • 2,000,000 Operations
  • 1,000,000 Operations
• Note (B
  • at 10% I | and ohmic load

Scope of delivery

• Scope of delivery
  • Not available as spare part | Slot cover for dust-proof covering of the opening not in use
