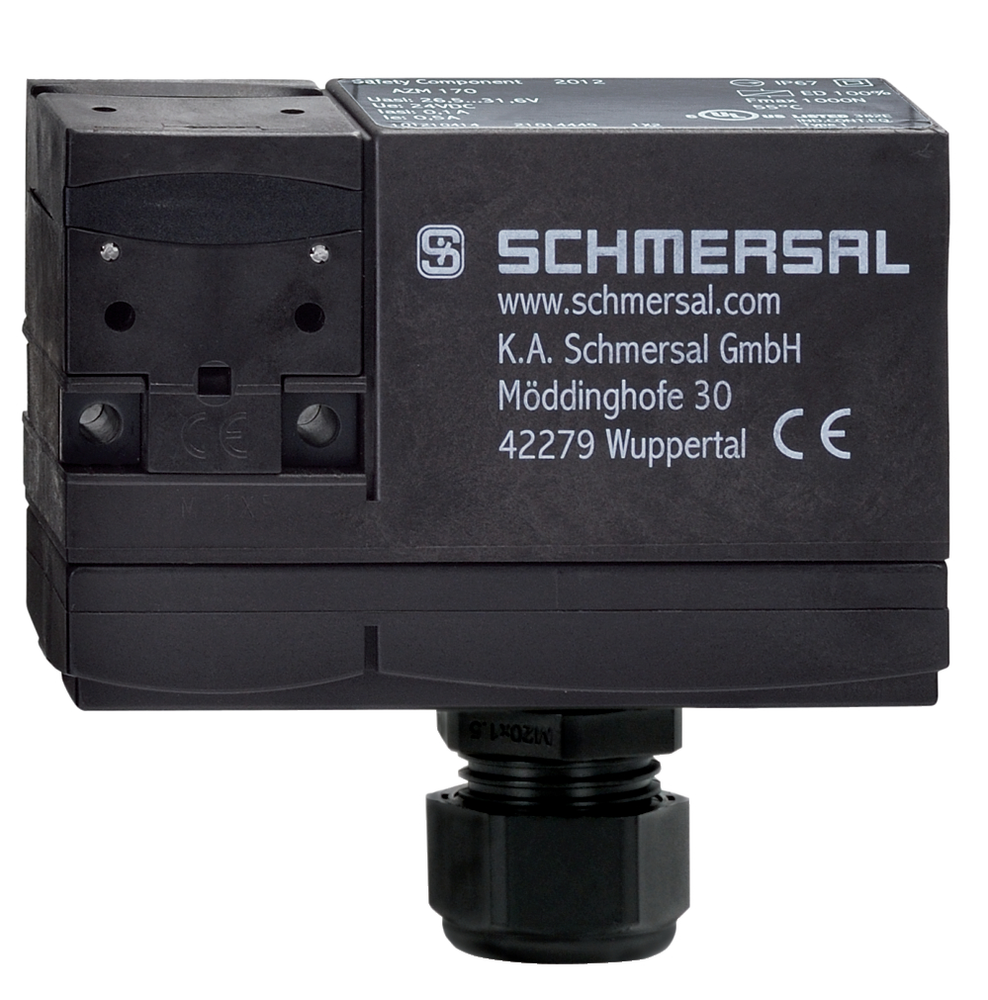

Schmersal 101140795

Ambient conditions

• Ambient temperature
  • -25 ... +60 °C
• Degree of protection
  • IP67
• Storage and transport temperature, maximum
  • +85 °C
• Storage and transport temperature, minimum
  • +25 °C

Ambient conditions - Insulation values

• Degree of pollution
  • 3
• Overvoltage category
  • III
• Rated impulse withstand voltage U
  • 4 kV
• Rated insulation voltage U
  • 250 VAC

Approvals - Standards

• Certificates
  • BG | cULus | CCC

Electrical data

• Electrical power consumption, maximum
  • 12 W
• Material of the contacts, electrical
  • Silver
• Note (Switching element)
  • Change-over contact with double break, type Zb or 2 NC contacts, with galvanically separated contact bridges
• Rated control voltage
  • 24 VAC/DC
• Required rated short-circuit current
  • 1,000 A
• Switching element
  • Opener (NC)
• Switching frequency
  • 1,000 /h
• Switching principle
  • slow action, positive break NC contact
• Thermal test current
  • 6 A

Electrical data - Magnet control

• Magnet switch-on time
  • 100 %
• Test pulse duration, maximum
  • 5 ms
• Test pulse interval, minimum
  • 50 ms

Electrical data - Safety contacts

• Current, Utilisation category AC-15
  • 4 A
• Current, Utilisation category DC-13
  • 2.5 A
• Voltage, Utilisation category AC-15
  • 230 VAC
• Voltage, Utilisation category DC-13
  • 24 VDC

General data

• Coding level according to EN ISO 14119
  • Low
• Enclosure material
  • Plastic, glass-fibre reinforced thermoplastic, self-extinguishing
• Gross weight
  • 288 g
• Standards
  • EN ISO 13849-1 | EN ISO 14119 | EN IEC 60947-5-1
• Working principle
  • electromechanical

General data - Features

• Manual release
  • Yes
• Number of actuating directions
  • 2
• Number of safety contacts
  • 2
• Power to unlock
  • Yes

Mechanical data

• Actuating speed, maximum
  • 2 m/s
• Holding force F
  • 1,300 N
  • 1,000 N
• Latching force
  • 30 N
• Mechanical life, minimum
  • 1,000,000 Operations
• Mounting
  • Screws
• Note
  • Torx T10
• Positive break force, minimum
  • 17 N
• Positive break force per NC contact, minimum
  • 8.5 N
• Positive break travel
  • 11 mm
• Tightening torque of the fastening screws for the housing cover, maximum
  • 1 Nm
• Tightening torque of the fastening screws for the housing cover, minimum
  • 0.7 Nm
• Type of the fixing screws
  • 2x M5

Mechanical data - Connection technique

• Allowed type of cable
  • flexible
• Cable section, maximum
  • 1 mm²
• Cable section, minimum
  • 0.75 mm²
• Termination
  • IDC method of termination

Mechanical data - Dimensions

• Height of sensor
  • 84 mm
• Length of sensor
  • 30 mm
• Width of sensor
  • 90 mm

Note

• Note (General)
  • This type termination (IDC) method enables simple connetion of flexible conductors without the need for the use of conductor ferrules
• Note (Manual release)
  • bottom | For manual release using M5 triangular key, available as accessory

Other data

• Note (applications)
  • sliding safety guard | removable guard | hinged safety guard

Safety classification

• Mission time
  • 20 Year(s)
• Standards
  • EN ISO 13849-1

Safety classification - Safety outputs

• B
  • 2,000,000 Operations

Scope of delivery

• Scope of delivery
  • Actuator must be ordered separately.
