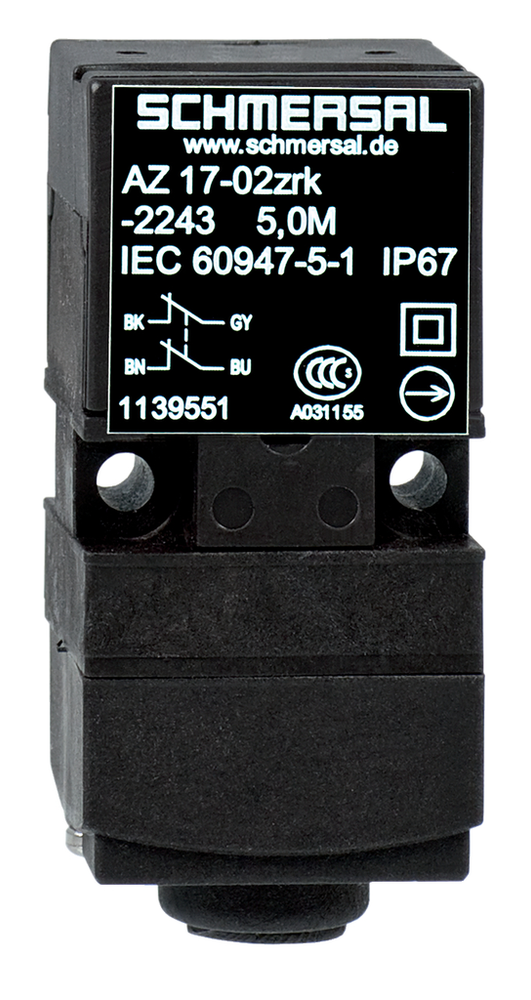

Schmersal 101136474
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
AZ 17-11ZRK-2243 5.0M
Schmersal 101136474 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Ambient conditions
- Ambient temperature
- -30 ... +80 °C
- Degree of protection
- IP67
- Permissible installation altitude above sea level, maximum
- 2,000 m
- Storage and transport temperature, maximum
- +85 °C
- Storage and transport temperature, minimum
- -30 °C
Ambient conditions - Insulation values
- Degree of pollution
- 3
- Overvoltage category
- III
- Rated impulse withstand voltage U
- 4 kV
- Rated insulation voltage U
- 250 VAC
Approvals - Standards
- Certificates
- BG | CCC
Electrical data
- Material of the contacts, electrical
- Silver
- Required rated short-circuit current
- 1,000 A
- Switching element
- NO contact, NC contact
- Switching frequency
- 2,000 /h
- Switching principle
- slow action, positive break NC contact
- Thermal test current
- 10 A
Electrical data - Auxiliary contacts
- Current, Utilisation category AC-15
- 4 A
- Current, Utilisation category DC-13
- 4 A
- Voltage, Utilisation category AC-15
- 230 VAC
- Voltage, Utilisation category DC-13
- 24 VDC
Electrical data - Safety contacts
- Current, Utilisation category AC-15
- 4 A
- Current, Utilisation category DC-13
- 4 A
- Voltage, Utilisation category AC-15
- 230 VAC
- Voltage, Utilisation category DC-13
- 24 VDC
General data
- Coding level according to EN ISO 14119
- Low
- Enclosure material
- Plastic, glass-fibre reinforced thermoplastic, self-extinguishing
- Gross weight
- 425 g
- Standards
- EN ISO 13849-1 | EN ISO 14119 | EN IEC 60947-5-1
- Working principle
- electromechanical
General data - Features
- Increased latching force
- Yes
- Number of actuating directions
- 2
- Number of auxiliary contacts
- 1
- Number of cable glands
- 1
- Number of safety contacts
- 1
Mechanical data
- Actuating speed, maximum
- 2 m/s
- Latching force
- 30 N
- Mechanical life, minimum
- 1,000,000 Operations
- Mounting
- Screws
- Positive break force per NC contact, minimum
- 17 N
- Positive break travel
- 11 mm
- Type of the fixing screws
- 2x M5
Mechanical data - Connection technique
- Cable entry
- front
- Length of cable
- 5 m
- Termination
- Cable
- Wire cross-section
- 0.75 mm
Mechanical data - Dimensions
- Height of sensor
- 65 mm
- Length of sensor
- 30 mm
- Width of sensor
- 30 mm
Note
- Note (General)
- Individual coding available on request
Other data
- Note (applications)
- sliding safety guard | removable guard | hinged safety guard
Safety classification
- Mission time
- 20 Year(s)
- Standards
- EN ISO 13849-1
Safety classification - Safety outputs
- B
- 2,000,000 Operations
- 1,000,000 Operations
- Note (B
- at 10% I | and ohmic load
Scope of delivery
- Scope of delivery
- Actuator must be ordered separately. | Slot cover for dust-proof covering of the opening not in use
