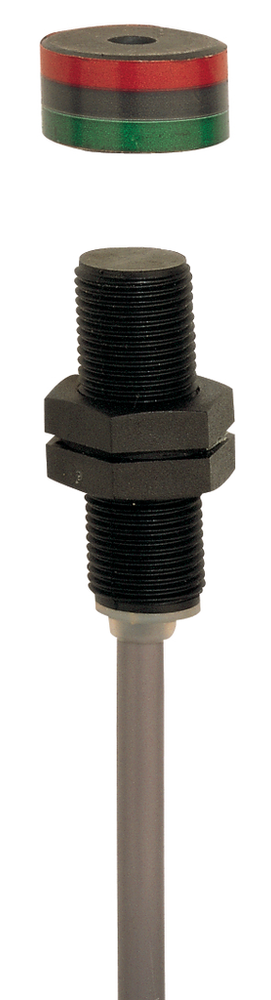

Schmersal 101135587

Accessory

• Recommendation (actuator)
  • BP 10 | BP 8 | BP 6 | BP 15 SS
• Recommended safety switchgear
  • SRB-E-301ST | SRB-E-201LC

Ambient conditions

• Ambient temperature
  • -25 ... +70 °C
• Degree of protection
  • IP67
• Resistance to vibrations
  • 10 … 55 Hz, amplitude 1 mm
• Restistance to shock
  • 30 g / 11 ms
• Storage and transport temperature, maximum
  • +70 °C
• Storage and transport temperature, minimum
  • -25 °C

Approvals - Standards

• Certificates
  • TÜV | BG | cULus

Electrical data

• Switching capacity, maximum
  • 3 W
• Switching current, maximum
  • 0.25 A
• Switching frequency, maximum
  • 5 Hz

General data

• Coding level according to EN ISO 14119
  • null
• Enclosure material
  • Glass-fibre, reinforced thermoplastic
• Gross weight
  • 192 g
• Installation conditions (mechanical)
  • quasi-flush
• Standards
  • BG-GS-ET-14 | EN IEC 60947-5-3
• Working principle
  • Magnetic drive

General data - Features

• Number of cable wires
  • 4
• Number of normally closed (NC)
  • 2
• Number of normally open (NO)
  • 1
• Number of safety contacts
  • 2

Mechanical data

• Actuating element
  • Magnet
• Direction of motion
  • Head-on to the active surface
• Switching distance actuator
  • Actuating magnet BP 6, Sao: 10 mm | Actuating magnet BP 6, Sar: 22 mm | Actuating magnet BP 8, Sao: 10 mm | Actuating magnet BP 8, Sar: 22 mm | Actuating magnet BP 10, Sao: 20 mm | Actuating magnet BP 10, Sar: 32 mm | Actuating magnet BP 15 SS, Sao: 20 mm | Actuating magnet BP 15 SS, Sar: 32 mm

Mechanical data - Connection technique

• Length of cable
  • 5 m
• Material of the Cable mantle
  • PVC
• Termination
  • Cable
• Wire cross-section
  • 0.25 mm
  • 23 AWG

Mechanical data - Dimensions

• ISO thread of the sensor
  • M12
• Length of sensor
  • 38.5 mm

Mechanical data - Switching distances according EN IEC 60947-5-3

• Assured switching distance "OFF" S
  • 22 mm | 32 mm
• Assured switching distance "ON" S
  • 10 mm | 20 mm

Note

• Note (General)
  • Contact symbols shown for the closed condition of the guard device. | The safety sensor must be mounted in such a way that actuation with another magnet is impossible (concealed mounting according to EN ISO 14119)

Safety classification

• Mission time
  • 20 Year(s)
• Standards
  • EN ISO 13849-1

Scope of delivery

• Scope of delivery
  • Actuator must be ordered separately.
