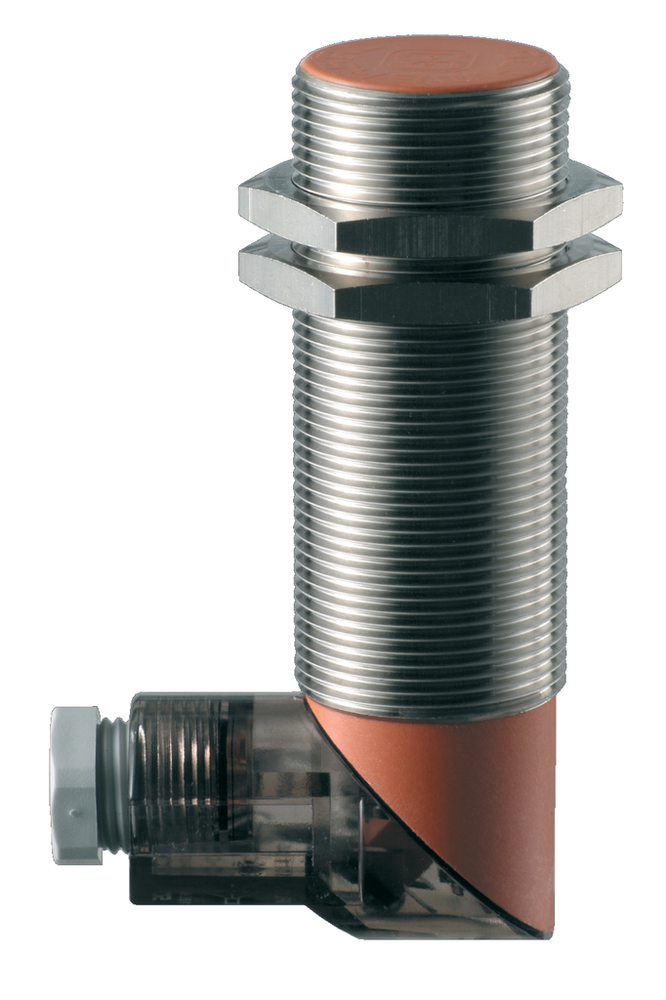

Schmersal 101127017
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
IFL 10-30L-10/01P
Schmersal 101127017 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Ambient conditions
- Ambient temperature
- -25 ... +70 °C
- Degree of protection
- IP67
- Protection class
- 0
Approvals - Standards
- Certificates
- CCC
Electrical data
- No-load supply current I
- 5.5 mA
- Operating current
- 400 mA
- Protection circuit integrated
- inductive interference protection | Protection against polarity reversal
- Rated operating voltage
- 10 ... 60 VDC
- Switching element
- NO contact or NC contact
- Switching frequency, approx.
- 350 Hz
Electrical data - Digital Output
- Current at Voltage drop U
- 0.4 A
- Design of control elements
- p-type
- Voltage drop U
- 1.5 V
General data
- Active area
- Plastic
- Enclosure coating material
- nickel-plated
- Enclosure material
- Brass
- Gross weight
- 140 g
- Housing construction form
- Cylinder, thread
- Installation conditions (mechanical)
- flush
- Material of the nuts
- Brass
- Standards
- DIN VDE 0660-208 | EN IEC 60947-5-2
General data - Features
- Integral system diagnostics, status
- Yes
- Number of cable wires
- 3
Mechanical data
- Tightening torque of nuts, maximum
- 30 Nm
Mechanical data - Connection technique
- Cable section, maximum
- 1 x 1.5 mm²
- Termination
- Screw connection
Mechanical data - Dimensions
- ISO thread of the sensor
- M30
- Length of sensor
- 118 mm
- width across flats
- 36 BK
Mechanical data - Switching distances according EN IEC 60947-5-3
- Nominal switching distance S
- 10 mm
Note
- Note (General)
- Instead of nuts, a mounting clamp can be provided. | Programmable by repositioning the plug-in jumper at the terminal screws
Status indication
- Note (Integral System Diagnostics, status )
- yellow LED
