Schmersal 101126704

Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

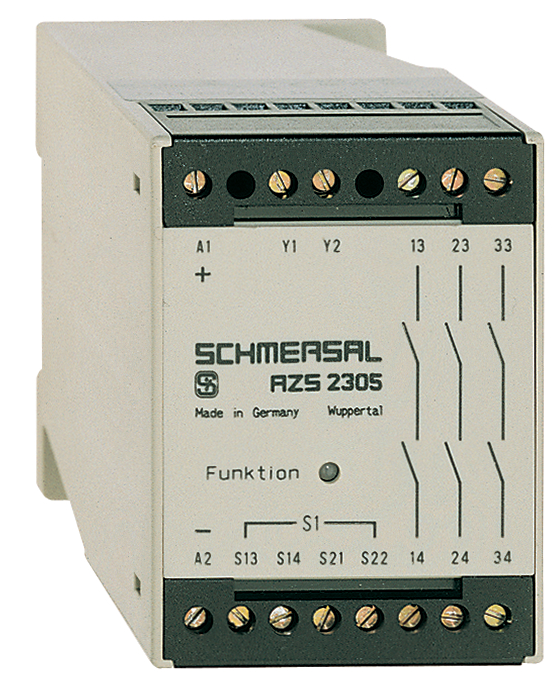

Schmersal 101126704 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Ambient conditions
- Ambient temperature
- +0 ... +55 °C
- Degree of protection of clips or terminals
- IP20
- Degree of protection of the enclosure
- IP40
- Degree of protection of the mounting space
- IP54
- Resistance to vibrations
- 10 ... 55 Hz, Amplitude 0.35 mm
- Restistance to shock
- 30 g / 11 ms
- Storage and transport temperature, maximum
- +70 °C
- Storage and transport temperature, minimum
- -25 °C
Ambient conditions - Insulation values
- Degree of pollution
- 2
- Overvoltage category
- III
- Rated impulse withstand voltage U
- 4 kV
Approvals - Standards
- Certificates
- cULus
Electrical data
- Contact resistance, maximum
- 0.1 Ω
- Drop-out delay in case of emergency, typically
- 20 ms
- Drop-out delay in case of power failure, typically
- 80 ms
- Electrical power consumption
- 5 W
- Frequency range
- 50 Hz | 60 Hz
- Note (Contact resistance)
- in new state
- Operating voltage
- 110 VAC -15 % / +15 %
- Pull-in delay at automatic start, maximum, typically
- 100 ms
- Pull-in delay at RESET, typically
- 20 ms
- Rated AC voltage for controls, 50 Hz, minimum
- 20.4 VAC
- Rated AC voltage for controls, 60 Hz, minimum
- 20.4 VAC
- Rated control voltage at AC 50 Hz, maximum
- 26.4 VAC
- Rated control voltage at AC 60 Hz, maximum
- 26.4 VAC
- Rated operating voltage
- 110 VAC
Electrical data - Digital inputs
- Conduction resistance, maximum
- 40 Ω
- Input signal, HIGH Signal "1"
- 10 … 30 VDC
- Input signal, LOW Signal "0"
- 0 … 2 VDC
Electrical data - Digital Output
- Current, Utilisation category DC-12
- 0.1 A
- Voltage, Utilisation category DC-12
- 24 VDC
Electrical data - Electromagnetic compatibility (EMC)
- EMC rating
- EMC-Directive
Electrical data - Relay outputs (auxiliary contacts)
- Switching capacity, maximum
- 2 A
- 24 VDC
Electrical data - Safe relay outputs
- Current, Utilisation category AC-15
- 2 A
- Current, Utilisation category DC-13
- 2 A
- Switching capacity, maximum
- 250 VAC
- 8 A
- Switching capacity, minimum
- 10 VDC
- 10 mA
- Voltage, Utilisation category AC-15
- 250 VAC
- Voltage, Utilisation category DC-13
- 24 VDC
General data
- Enclosure material
- Glass-fibre, reinforced thermoplastic
- Gross weight
- 445 g
- Standards
- BG-GS-ET-20 | EN IEC 62061 | EN ISO 13849-1 | EN IEC 60947-5-1 | EN IEC 60947-5-3 | EN IEC 60947-5-5 | EN IEC 60204-1 | EN IEC 60947-1
General data - Features
- Automatic reset function
- Yes
- Cross-circuit detection
- Yes
- Earth connection detection
- Yes
- Integral system diagnostics, status
- Yes
- Number of LEDs
- 1
- Number of normally closed (NC)
- 1
- Number of normally open (NO)
- 1
- Number of safety contacts
- 3
- Number of signalling outputs
- 2
- Number of undelayed semi-conductor outputs with signaling function
- 2
- Reset after disconnection of supply voltage
- Yes
- Wire breakage detection
- Yes
Integral system diagnosis (ISD)
- Faults
- Failure of the safety relay to pull-in or drop-out | Fault on the input circuits or the relay control circuits of the safety monitoring module | Difference in time setting between channel I and channel II | Cross conclusions to the input lines | Interruption of the input connections
- Note (ISD -Faults)
- The following faults are registered by the safety monitoring modules and indicated by ISD.
Mechanical data
- Mounting
- Snaps onto standard DIN rail to EN 60715
Mechanical data - Connection technique
- Cable section, maximum
- 4 mm²
- Note (Cable section)
- All indications including the conductor ferrules.
- Termination
- rigid or flexible | Screw terminals M20 x 1.5
- Tightening torque of Clips
- 0.4 Nm
Mechanical data - Dimensions
- Depth
- 110 mm
- Height
- 75 mm
- Width
- 55 mm
Note
- Note (General)
- Inductive loads (e.g. contactors, relays, etc.) are to be suppressed by means of a suitable circuit.
Other data
- Note (applications)
- Fail-safe delay timer
Safety classification
- Category
- 3
- Mission time
- 20 Year(s)
- Performance Level, up to
- d
- PFH value
- 1.00 x 10⁻⁷ /h
- Safety Integrity Level (SIL), suitable for applications in
- 2
- Standards
- EN IEC 61508
Specifications
- Depth
- 110 mm
- Height
- 75 mm
- Width
- 55 mm
Wiring example
- Note (Wiring diagram)
- The wiring diagram is shown with guard doors closed and in de-energised condition. | The ISD tables (Intergral System Diagnostics) for analysis of the fault indications and their causes are shown in the appendix. | To monitor one guard door at plants with dangerous run-on movements up to PL d and Category 3 | Monitoring time for unlocking of solenoid interlocks | The solenoid interlock releases the guard device only when the set time has elapsed. The time begins to run when the power contactors have dropped out.
