Description

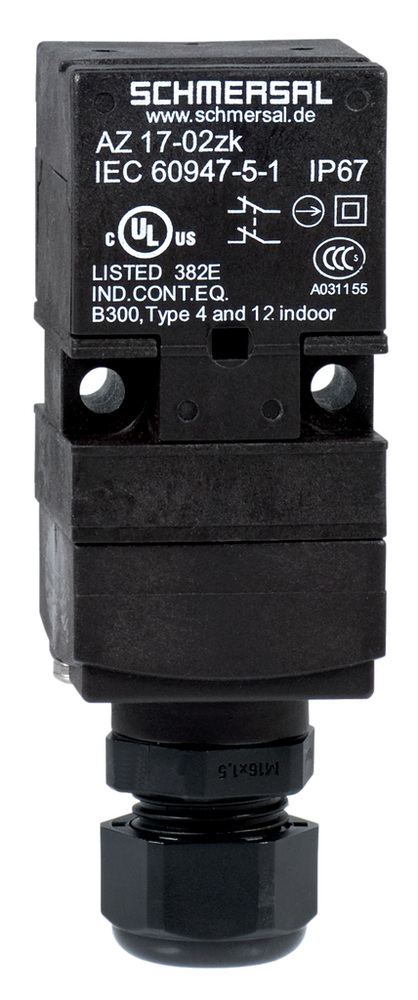

AZ 17-02ZK
Schmersal 101121961 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Ambient conditions
- Degree of protection
- IP67 to EN 60529
Ambient conditions - Insulation value
- Rated impulse withstand voltage U
- 4 kV
- Rated insulation voltage U
- 250 V
Approval - Standards
- Certificates
- BG | cULus | CCC | EAC
Electrical data
- Switching element
- Opener (NC)
- Switching principle
- Creep circuit element
- Thermal test current
- 10 A
- Utilisation category AC-15
- 4 A
- 230 VAC
- Utilisation category DC-13
- 24 VDC
- 4 A
General data
- Coding level according to ISO 14119
- Low
- Enclosure material
- Plastic, glass-fibre reinforced thermoplastic, self-extinguishing
- Gross weight
- 85 g
- Material of the contacts, electrical
- Silver
General data - Features
- Number of safety contacts
- 2
Mechanical data
- Actuating speed, maximum
- 2 m/s
- Latching force
- 5 N
- Mechanical life, minimum
- 1,000,000 Operations
- Positive break force, minimum
- 17 N
- positive break travel
- 11 mm
Mechanical data - Connection technique
- Cable section, maximum
- 1 x 1 mm²
- Cable section, minimum
- 1 x 0.75 mm²
- Terminal Connector
- IDC method of termination
Mechanical data - Dimensions
- Height of sensor
- 60 mm
- Length of sensor
- 30 mm
- Width of sensor
- 30 mm
Safety appraisal
- Mission Time
- 20 Year(s)
- Standards
- EN ISO 13849-1
Safety appraisal - Safety outputs
- B10d Normally-closed contact (NC)
- 2,000,000 Operations
Scope of delivery
- Included in delivery
- Actuators must be ordered separately. | Slot cover for dust-proof covering of the opening not in use
