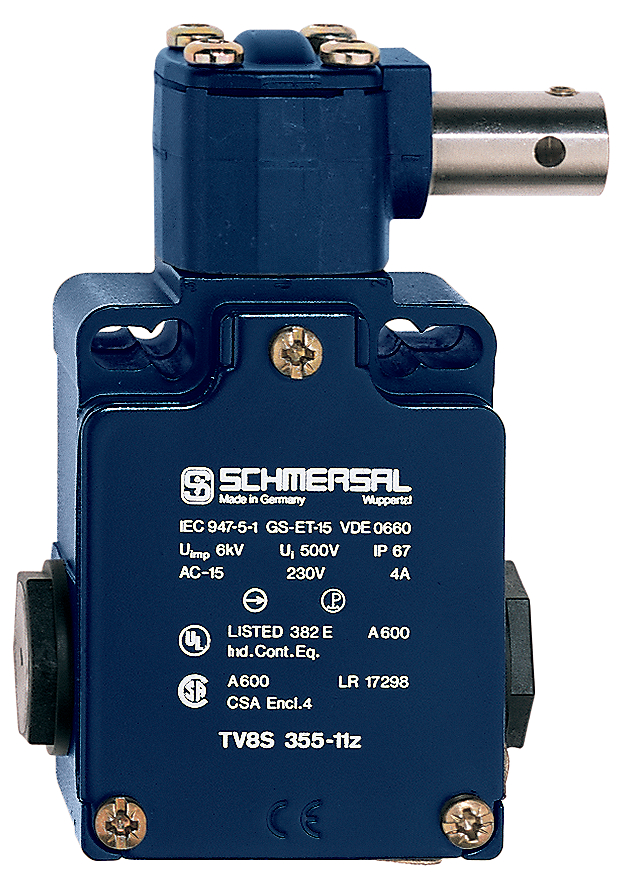

Schmersal 101117212

Ambient conditions

• Ambient temperature
  • -25 ... +70 °C
• Degree of protection
  • IP67

Ambient conditions - Insulation values

• Rated impulse withstand voltage U
  • 6 kV
• Rated insulation voltage U
  • 500 V

Approvals - Standards

• Certificates
  • cULus | CCC

Electrical data

• Material of the contacts, electrical
  • Silver
• Switching element
  • Opener (NC)
• Switching frequency
  • 1,000 /h
• Switching principle
  • Slow action
• Thermal test current
  • 10 A
• Utilisation category AC-15
  • 230 VAC
  • 4 A
• Utilisation category DC-13
  • 4 A
  • 24 VDC

General data

• Enclosure coating material
  • painted
• Enclosure material
  • Light alloy die-casting
• Gross weight
  • 315 g

General data - Features

• Number of safety contacts
  • 2

Mechanical data

• Actuating element
  • Other
• Mechanical life, minimum
  • 1,000,000 Operations
• Mounting hole for the Shaft
  • 10 mm
• Positive break angle
  • 7 °
• Positive break torque
  • 0.6 Nm

Mechanical data - Connection technique

• Cable section, maximum
  • 2.5 mm²
• Cable section, minimum
  • 0.75 mm²
• Note (Cable section)
  • All indications including the conductor ferrules.
• Termination
  • Screw terminals M20 x 1.5

Mechanical data - connector side B

• Connector typ
  • Female connector

Mechanical data - Dimensions

• Height of sensor
  • 107 mm
• Length of sensor
  • 65.3 mm
• Width of sensor
  • 66.7 mm

Note

• Note (General)
  • By turning the head in 90° steps, 8 actuating planes are possible. A Torx T10 screwdriver is required for this purpose. Even when the screw is removed, the head is self-retaining. The switch can still not be tampered. | Adjustment tool: locking screw to fix, shaft pre-drilled to pin | Universal joint available to compensate for axial displacement (only for shaft bore 10 mm)

Safety classification

• Mission time
  • 20 Year(s)
• Standards
  • BG-GS-ET-15 | EN ISO 13849-1 | EN IEC 60947-5-1

Safety classification - Safety outputs

• B
  • 20,000,000 Operations
