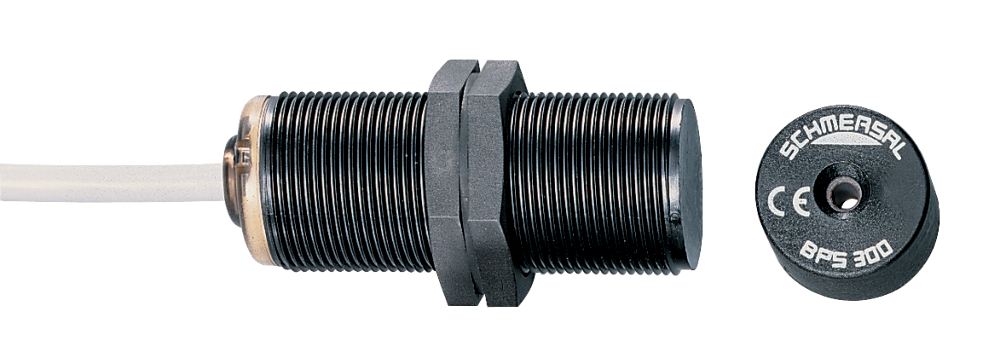

Schmersal 101110514
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
BNS 300-01ZG
Schmersal 101110514 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Accessory
- Recommendation (actuator)
- BPS 300 | BPS 303 | BPS 303 SS
- Recommended safety switchgear
- SRB-E-301ST | SRB-E-201LC
Ambient conditions
- Ambient temperature
- -25 ... +55 °C
- Degree of protection
- IP67
- Resistance to vibrations
- 10 … 55 Hz, amplitude 1 mm
- Restistance to shock
- 30 g / 11 ms
- Storage and transport temperature, maximum
- +70 °C
- Storage and transport temperature, minimum
- -25 °C
Approvals - Standards
- Certificates
- UL
Electrical data
- Switching capacity, maximum
- 750 W
- Switching current, maximum
- 3 A
- Switching frequency, maximum
- 5 Hz
- Switching voltage, maximum
- 250 VAC
- Time to readiness, maximum
- 50 ms
Electrical data - Relay outputs
- Current, Utilisation category DC-13
- 0.03 A
- Voltage, Utilisation category DC-13
- 24 VDC
General data
- Coding level according to EN ISO 14119
- Low
- Duration of risk, maximum
- 50 ms
- Enclosure material
- Glass-fibre, reinforced thermoplastic
- Gross weight
- 110 g
- Installation conditions (mechanical)
- quasi-flush
- Material of the nuts
- Thermoplastic
- Standards
- BG-GS-ET-14 | EN IEC 60947-5-3
- Working principle
- Magnetic drive
General data - Features
- Integral system diagnostics, status
- Yes
- Number of cable wires
- 4
- Number of normally closed (NC)
- 1
- Number of safety contacts
- 1
- Safety monitoring module integrated
- Yes
Mechanical data
- Actuating element
- Magnet
- Direction of motion
- Head-on to the active surface
- Tightening torque of nuts, maximum
- 3 Nm
Mechanical data - Connection technique
- Length of cable
- 1 m
- Material of the Cable mantle
- PVC
- Termination
- Cable
- Wire cross-section
- 0.75 mm
- 18 AWG
Mechanical data - Dimensions
- ISO thread of the sensor
- M30
- Length of sensor
- 78 mm
- width across flats
- 36 BK
Mechanical data - Switching distances according EN IEC 60947-5-3
- Assured switching distance "OFF" S
- 15 mm
- Assured switching distance "ON" S
- 5 mm
Note
- Note (General)
- Contact symbols shown for the closed condition of the guard device.
Safety classification
- Mission time
- 20 Year(s)
- Standards
- EN ISO 13849-1
Safety classification - Safety outputs
- B
- 20,000,000 Operations
Scope of delivery
- Scope of delivery
- Actuator must be ordered separately.
- Scope of delivery of mounting material
- 2x nuts M30 x 1.5
Status indication
- Note (Integral System Diagnostics, status )
- The LED is illuminated when the guard is closed.
