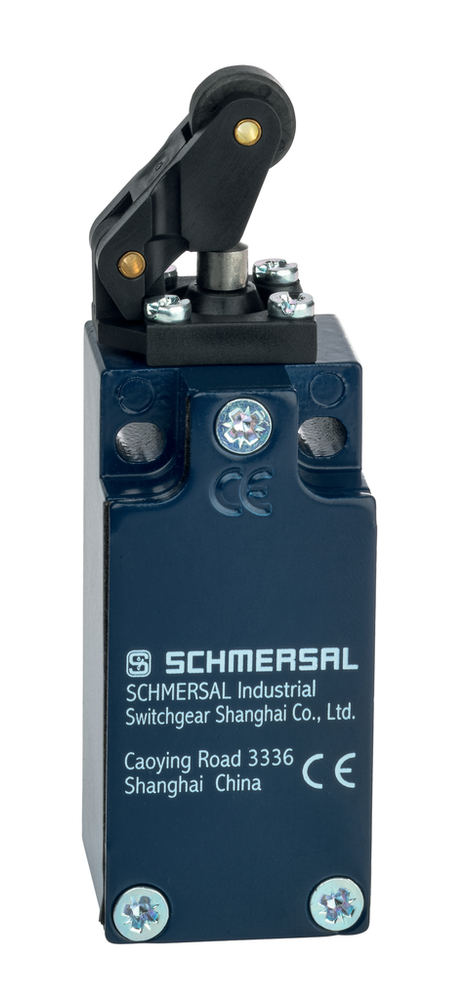

Schmersal 101091550
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
TK 235-20Z
Schmersal 101091550 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Ambient conditions
- Ambient temperature, maximum
- +80 °C
- Ambient temperature, minimum
- -30 °C
- Degree of protection
- IP65 to EN 60529 | IP67 to EN 60529
Ambient conditions - Insulation value
- Rated impulse withstand voltage U
- 6 kV
- Rated insulation voltage U
- 500 V
Approval - Standards
- Certificates
- cULus | cCSAus | CCC | EAC
Electrical data
- Required rated short-circuit current to EN 60947-5-1
- 1,000 A
- Switching element
- Normally open contact (NO)
- Switching frequency
- 5,000 /h
- Switching principle
- Creep circuit element
- Thermal test current
- 10 A
- Utilisation category AC-15
- 4 A
- 240 VAC
- Utilisation category DC-13
- 1 A
- 24 VDC
General data
- Actuator type to DIN EN 50047
- e
- Enclosure material
- Zinc die-cast, paint finish
- Gross weight
- 150 g
- Housing construction form
- Norm construction design
- Material of the contacts, electrical
- Silver
- Standards
- IEC 60947-5-1 | EN ISO 13849-1 | BG-GS-ET-15
General data - Features
- Number of auxiliary contacts
- 2
- Safety functions
- Yes
Mechanical data
- Actuating element
- Offset roller lever
- Actuating force, minimum
- 9 N
- Actuating speed, maximum
- 1 m/s
- Actuating speed, minimum
- 240 mm/min
- Mechanical life, minimum
- 20,000,000 Operations
- Note (Actuating speed)
- Actuating speed with actuating angle 30° to switch axis
- Note Bounce duration
- Bounce duration in accordance with actuating speed
- Note (Switchover time)
- Switchover time in accordance with actuating speed
- Positive break force, minimum
- 19 N
Mechanical data - Connection technique
- Cable section, maximum
- 2.5 mm²
- Cable section, minimum
- 0.75 mm²
- Note (Cable section)
- All indications about the cable section are including the conductor ferrules.
- Terminal Connector
- Screw terminals M20 x 1.5
Mechanical data - Dimensions
- Height of sensor
- 95.1 mm
- Length of sensor
- 30 mm
- Width of sensor
- 30 mm
Safety appraisal
- Mission Time
- 20 Year(s)
- Standards
- EN ISO 13849-1
