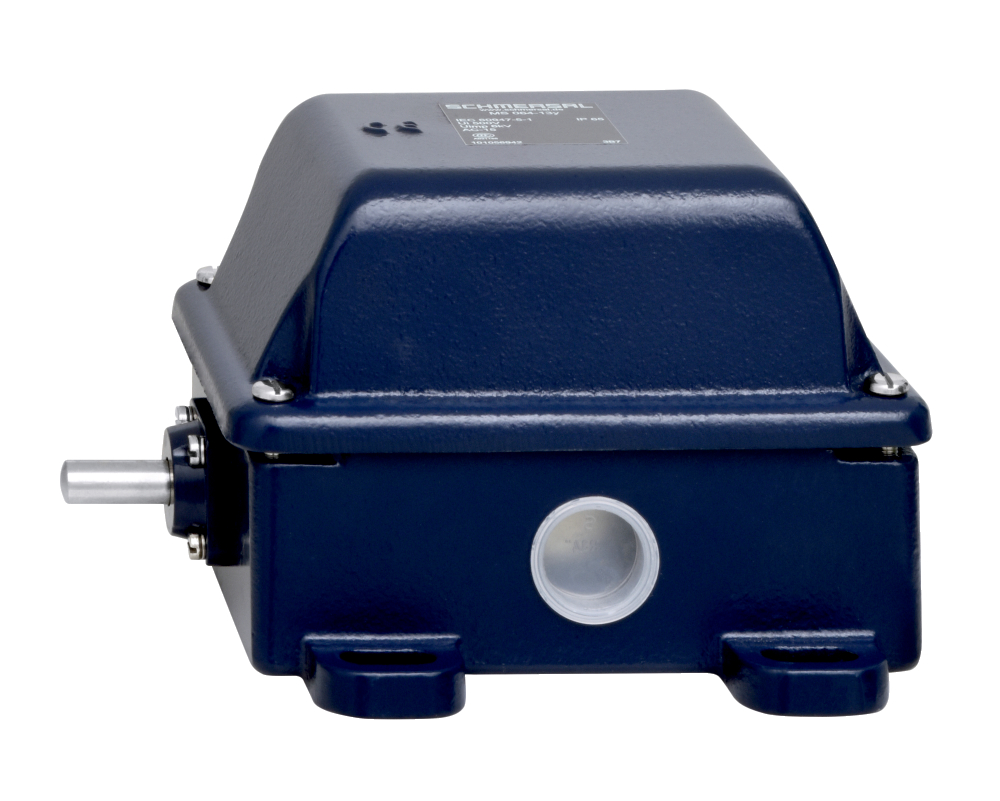

Schmersal 101060736

Ambient conditions

• Ambient temperature
  • -30 ... +90 °C
• Degree of protection
  • IP65

Ambient conditions - Insulation values

• Rated impulse withstand voltage U
  • 6 kV
• Rated insulation voltage U
  • 500 V

Electrical data

• Material of the contacts, electrical
  • Silver
• Note (Switching element)
  • with double break
• Switching element
  • NO contact / NC contact
• Switching frequency
  • 1,000 /h
• Switching principle
  • Slow action
• Thermal test current
  • 25 A
• Utilisation category AC-15
  • 25 A
  • 400 VAC

General data

• Enclosure coating material
  • painted
• Enclosure material
  • Grey cast iron, galvanised
• Gross weight
  • 3,420 g
• Slide form
  • Sphere
• Standards
  • EN IEC 60947-5-1
• Working principle
  • mechanical

General data - Features

• Number of normally closed (NC)
  • 2
• Number of normally open (NO)
  • 1

Mechanical data

• Actuating angle
  • 20 °
• Actuating element
  • Plunger
• Actuating speed, maximum
  • 1 m/s
• Actuating speed, minimum
  • 600 mm/min
• Contact opening
  • 2 x 4 mm
• Mechanical life, minimum
  • 1,000,000 Operations
• Note (Actuating speed)
  • Actuating speed with vertical actuating angle to switch axis

Mechanical data - Connection technique

• Cable section, maximum
  • 4 mm²
• Cable section, minimum
  • 1.5 mm²
• Note (Cable section)
  • All indications including the conductor ferrules.
• Termination
  • Screw terminals M20 x 1.5
• Wire cross-section
  • 11 AWG

Mechanical data - Dimensions

• Diameter of the Plunger
  • 10 mm
• Height of sensor
  • 111 mm
• Length of sensor
  • 149 mm
• Width of sensor
  • 156 mm

Note

• Note (General)
  • Actuation from the side of the plunger should be avoided, since this reduces the mechanical life of the position switch.

Safety classification - Safety outputs

• B
  • 2,000,000 Operations
