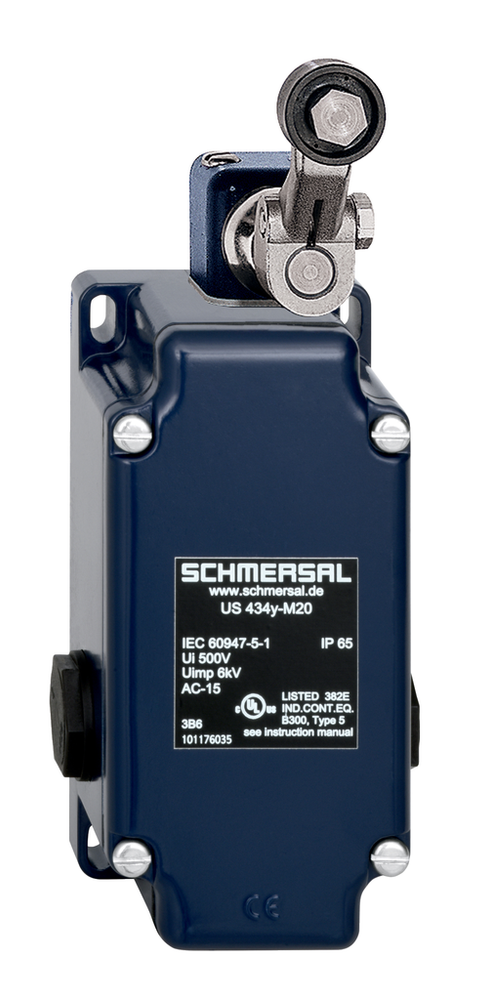

Schmersal 101060626
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
UVH 434Y-OE4
Schmersal 101060626 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Ambient conditions
- Ambient temperature
- -20 ... +60 °C
- Degree of protection
- IP65
Ambient conditions - Insulation values
- Rated insulation voltage U
- 500 V
Electrical data
- Material of the contacts, electrical
- Silver
- Switching element
- Opener (NC)
- Switching principle
- Slow action
- Thermal test current
- 16 A
General data
- Enclosure coating material
- painted
- Enclosure material
- Light alloy die-casting
- Gross weight
- 540 g
- Slide form
- Castor
- Standards
- EN IEC 60947-5-1
- Working principle
- mechanical
General data - Features
- Number of normally closed (NC)
- 4
Mechanical data
- Actuating angle, from left of switch axis
- 30 °
- Actuating angle, from right of switch axis
- 30 °
- Actuating element
- Roller lever
- Actuating speed, maximum
- 3 m/s
- Actuating speed, minimum
- 1 mm/min
- Contact opening
- 2 x 1.5 mm
- Mechanical life, minimum
- 10,000,000 Operations
- Note (Actuating speed)
- Actuating speed with vertical actuating angle to switch axis
- Roller material
- Plastic
Mechanical data - Connection technique
- Cable section, maximum
- 2.5 mm²
- Cable section, minimum
- 1.5 mm²
- Note (Cable section)
- All indications including the conductor ferrules.
- Termination
- Screw terminals M20 x 1.5
- Wire cross-section
- 13 AWG
Mechanical data - Dimensions
- Diameter of Castor
- 20 mm
- Height of sensor
- 185 mm
- Length of sensor
- 50 mm
- Width of Castor
- 8.5 mm
- Width of sensor
- 62 mm
Note
- Note (General)
- Type of contact and switching points can be factory set to order.
Safety classification - Safety outputs
- B
- 2,000,000 Operations
