Description

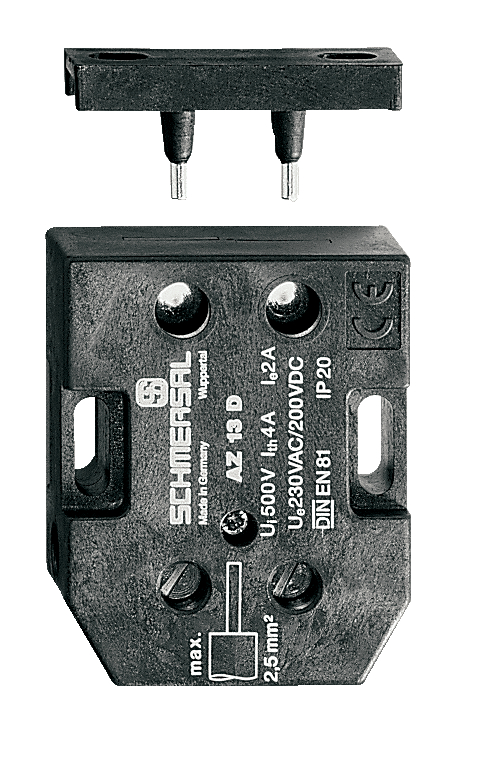

AZ 13 KU
Schmersal 101060279 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Ambient conditions
- Ambient temperature
- -30 ... +70 °C
- Degree of protection
- IP20
Ambient conditions - Insulation values
- Rated insulation voltage U
- 500 V
Electrical data
- Material of the contacts, electrical
- Silver-plated Cu rivets
- Switching element
- Opener (NC)
- Switching principle
- Self-cleaning pressure contact
- Thermal test current
- 4 A
- Utilisation category AC-15
- 230 VAC
- 2 A
- Utilisation category DC-13
- 200 VDC
- 2 A
General data
- Enclosure material
- Plastic, glass-fibre reinforced thermoplastic, self-extinguishing
- Gross weight
- 33 g
- Material of the housing cover
- thermoplastic, self-extinguishing
- Standards
- EN 81-20 | EN 81-50
General data - Features
- Number of safety contacts
- 1
- Suitable for elevators
- Yes
Mechanical data
- Actuating force, approx.
- 1.6 N
- Actuating panels
- 1. bottom
- Actuating stroke
- 7 mm
- Mechanical life, minimum
- 1,000,000 Operations
- Mounting
- Enclosure with mounting slots
- Note (Positive break force)
- per NC
- Positive break force, minimum
- 10 N
Mechanical data - Connection technique
- Cable entry
- Single conductor version with connecting funnel
- Notes
- M4, with self-opening clamping plates
- Termination
- Screw terminals M20 x 1.5
Mechanical data - Dimensions
- Depth
- 19 mm
- Height
- 55 mm
- Width
- 44 mm
Scope of delivery
- Scope of delivery
- Actuator must be ordered separately.
Specifications
- Depth
- 19 mm
- Height
- 55 mm
- Width
- 44 mm
