Description
IFL 20-400-11YPG

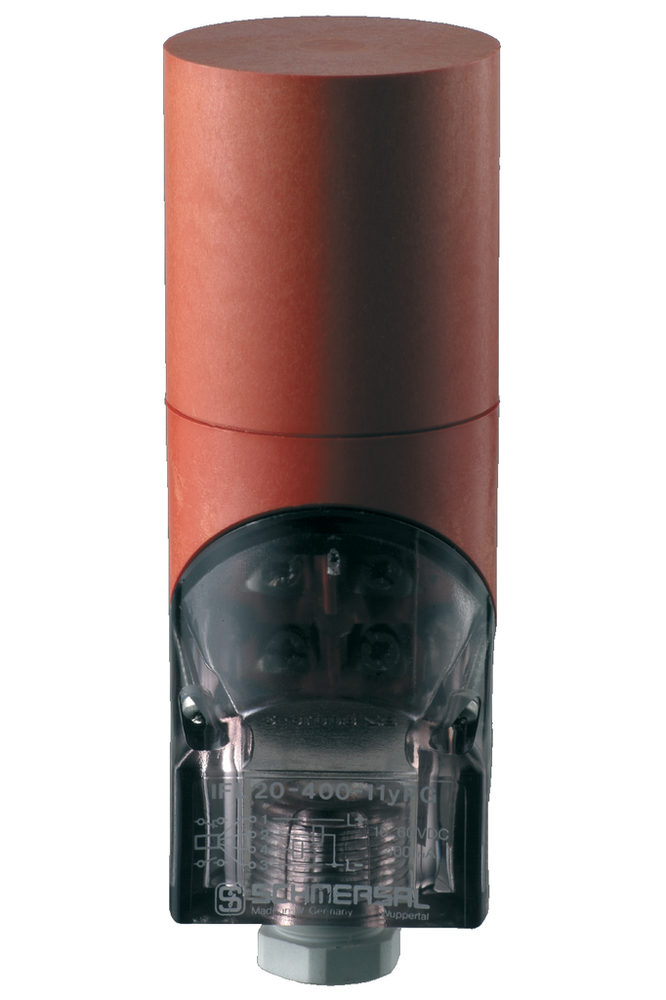

Schmersal 101059986 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Ambient conditions
- Ambient temperature
- -25 ... +70 °C
- Degree of protection
- IP65
- Protection class
- II
Approvals - Standards
- Certificates
- CCC
Electrical data
- No-load supply current I
- 5.5 mA
- Operating current
- 400 mA
- Protection circuit integrated
- inductive interference protection | Protection against polarity reversal
- Rated operating voltage
- 10 ... 60 VDC
- Switching element
- NO contact and NC contact (antivalent)
- Switching frequency, approx.
- 100 Hz
Electrical data - Digital Output
- Current at Voltage drop U
- 0.4 A
- Design of control elements
- p-type
- Voltage drop U
- 1.5 V
General data
- Active area
- Plastic
- Enclosure material
- Plastic
- Gross weight
- 188 g
- Housing construction form
- Cylinder smooth
- Installation conditions (mechanical)
- not flush
- Material of the terminal fixing
- Plastic
- Standards
- DIN VDE 0660-208 | EN IEC 60947-5-2
General data - Features
- Integral system diagnostics, status
- Yes
- Number of cable wires
- 4
Mechanical data - Connection technique
- Cable section, maximum
- 1 x 1.5 mm²
- Termination
- Screw connection
Mechanical data - Dimensions
- Diameter of sensor
- 40 mm
- Height of sensor
- 40 mm
- Length of sensor
- 108 mm
- Width of sensor
- 40 mm
Mechanical data - Switching distances according EN IEC 60947-5-3
- Nominal switching distance S
- 20 mm
Scope of delivery
- Note (scope of delivery, number and type)
- Clamp H 40 is included in delivery
Status indication
- Note (Integral System Diagnostics, status )
- yellow LED
