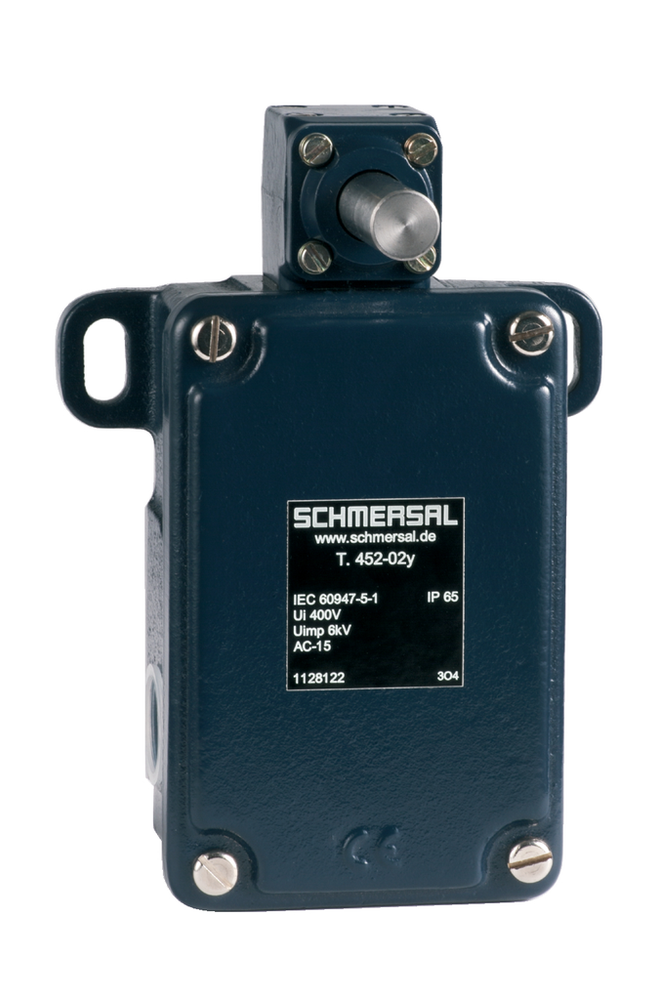

Schmersal 101059584
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
TD 452-21Y
Schmersal 101059584 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Ambient conditions
- Ambient temperature
- -30 ... +90 °C
- Degree of protection
- IP65
Ambient conditions - Insulation values
- Rated impulse withstand voltage U
- 6 kV
- Rated insulation voltage U
- 400 V
Approvals - Standards
- Certificates
- DNV | CCC
Electrical data
- Material of the contacts, electrical
- Silver
- Note (Switching element)
- with double break
- Switching element
- NO contact, NC contact
- Switching principle
- Slow action
- Thermal test current
- 16 A
- Utilisation category AC-15
- 400 VAC
- 4 A
General data
- Enclosure coating material
- painted
- Enclosure material
- Grey cast iron, galvanised
- Gross weight
- 1,995 g
- Slide form
- Castor
- Standards
- EN IEC 60947-5-1
- Working principle
- mechanical
General data - Features
- Number of normally closed (NC)
- 1
- Number of normally open (NO)
- 2
Mechanical data
- Actuating angle, from left of switch axis
- 30 °
- Actuating angle, from right of switch axis
- 30 °
- Actuating element
- Roller lever
- Actuating speed, maximum
- 3 m/s
- Actuating speed, minimum
- 1 mm/min
- Contact opening
- 2 x 6 mm
- Mechanical life, minimum
- 10,000,000 Operations
- Note (Actuating speed)
- Actuating speed with vertical actuating angle to switch axis
- Roller material
- Plastic
Mechanical data - Connection technique
- Cable section, maximum
- 2.5 mm²
- Cable section, minimum
- 1.5 mm²
- Note (Cable section)
- All indications including the conductor ferrules.
- Termination
- Screw terminals M20 x 1.5
- Wire cross-section
- 13 AWG
Mechanical data - Dimensions
- Diameter of Castor
- 36 mm
- Height of sensor
- 265 mm
- Length of sensor
- 64 mm
- Width of Castor
- 9 mm
- Width of sensor
- 118 mm
