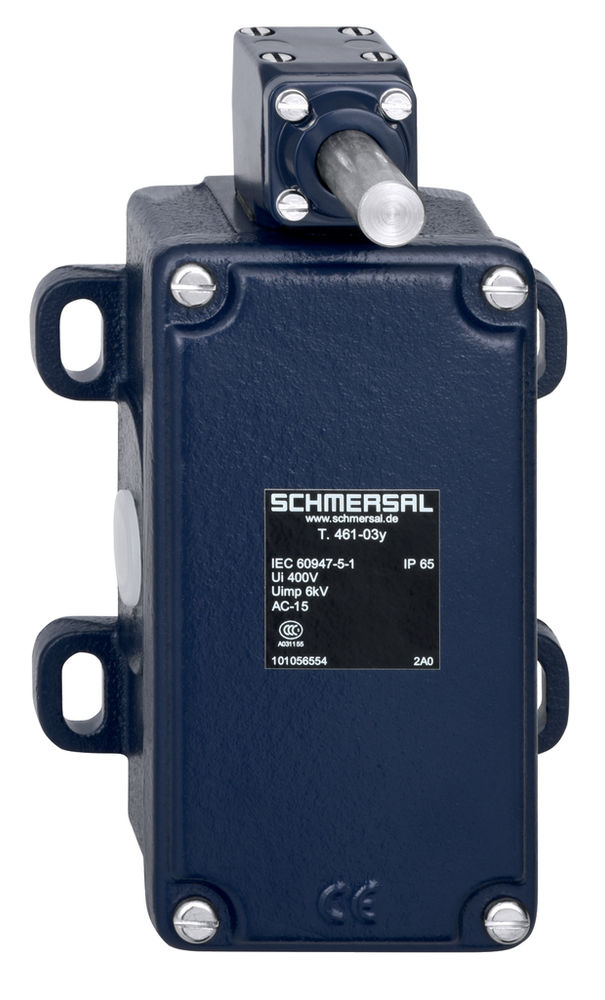

Schmersal 101059446

Ambient conditions

• Ambient temperature
  • -30 ... +90 °C
• Degree of protection
  • IP65

Ambient conditions - Insulation values

• Rated impulse withstand voltage U
  • 4 kV
• Rated insulation voltage U
  • 250 VAC

Approvals - Standards

• Certificates
  • DNV

Electrical data

• Bounce duration, maximum
  • 5 ms
• Material of the contacts, electrical
  • Silver
• Note (Switching element)
  • with double break
• Switching element
  • NO contact / NC contact
• Switching principle
  • Snap action
• Switchover time, maximum
  • 35 ms
• Thermal test current
  • 16 A
• Utilisation category AC-15
  • 230 VAC
  • 4 A

General data

• Enclosure coating material
  • painted
• Enclosure material
  • Grey cast iron, galvanised
• Gross weight
  • 2,290 g
• Slide form
  • Castor
• Standards
  • EN IEC 60947-5-1
• Working principle
  • mechanical

General data - Features

• Number of normally closed (NC)
  • 2
• Number of normally open (NO)
  • 2

Mechanical data

• Actuating angle, from left of switch axis
  • 30 °
• Actuating angle, from right of switch axis
  • 30 °
• Actuating element
  • Roller lever
• Actuating speed, maximum
  • 3 m/s
• Actuating speed, minimum
  • 1 mm/min
• Contact opening
  • max. 2 x 2.5 mm
• Mechanical life, minimum
  • 5,000,000 Operations
• Note (Actuating speed)
  • Actuating speed with vertical actuating angle to switch axis
• Roller material
  • Plastic

Mechanical data - Connection technique

• Cable section, maximum
  • 2.5 mm²
• Cable section, minimum
  • 1.5 mm²
• Note (Cable section)
  • All indications including the conductor ferrules.
• Termination
  • Screw terminals M20 x 1.5
• Wire cross-section
  • 13 AWG

Mechanical data - Dimensions

• Diameter of Castor
  • 36 mm
• Height of sensor
  • 248 mm
• Length of sensor
  • 64 mm
• Width of Castor
  • 9 mm
• Width of sensor
  • 118 mm

Safety classification - Safety outputs

• B
  • 2,000,000 Operations
