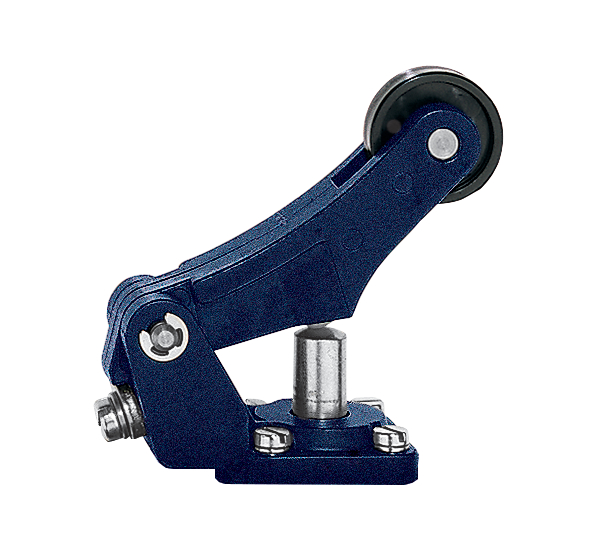

Schmersal 101059042

Ambient conditions

• Ambient temperature, maximum
  • +90 °C
• Ambient temperature, minimum
  • -30 °C
• Degree of protection
  • IP65 to EN 60529

Ambient conditions - Insulation value

• Rated impulse withstand voltage U
  • 6 kV
• Rated insulation voltage U
  • 400 V

Approval - Standards

• Certificates
  • DNV.GL | EAC

Electrical data

• Note (Switching element)
  • with double break
• Switching element
  • NO contact / NC contact
• Switching principle
  • Creep circuit element
• Thermal test current
  • 16 A
• Utilisation category AC-15
  • 4 A
  • 400 VAC

General data

• Active principle
  • mechanical
• Enclosure coating material
  • painted
• Enclosure material
  • Grey cast iron, galvanised
• Gross weight
  • 2,000 g
• Material of the contacts, electrical
  • Silver
• Roller material
  • Plastic
• Slide form
  • Castor
• Standards
  • EN 60947-5-1

General data - Features

• Number of openers
  • 2
• Number of shutters
  • 2

Mechanical data

• Actuating angle, from left of switch axis
  • 45 °
• Actuating angle, from right of switch axis
  • 30 °
• Actuating element
  • Offset roller lever
• Actuating speed, maximum
  • 0.5 m/s
• Actuating speed, minimum
  • 1 mm/min
• Contact opening
  • max. 2 x 6 mm
• Mechanical life, minimum
  • 10,000,000 Operations
• Note (Actuating speed)
  • Actuating speed with vertical actuating angle to switch axis

Mechanical data - Connection technique

• Cable section, maximum
  • 2.5 mm²
• Cable section, minimum
  • 1.5 mm²
• Note (Cable section)
  • All indications about the cable section are including the conductor ferrules.
• Terminal Connector
  • Screw terminals M20 x 1.5
• Wire cross-section
  • 13 AWG

Mechanical data - Dimensions

• Diameter of Castor
  • 25 mm
• Height of sensor
  • 229 mm
• Length of sensor
  • 64 mm
• Width of Castor
  • 6.5 mm
• Width of sensor
  • 118 mm

Safety appraisal - Safety outputs

• B10d Normally-closed contact (NC)
  • 2,000,000 Operations
