Schmersal 101057978
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
M. 250-11Z-1224

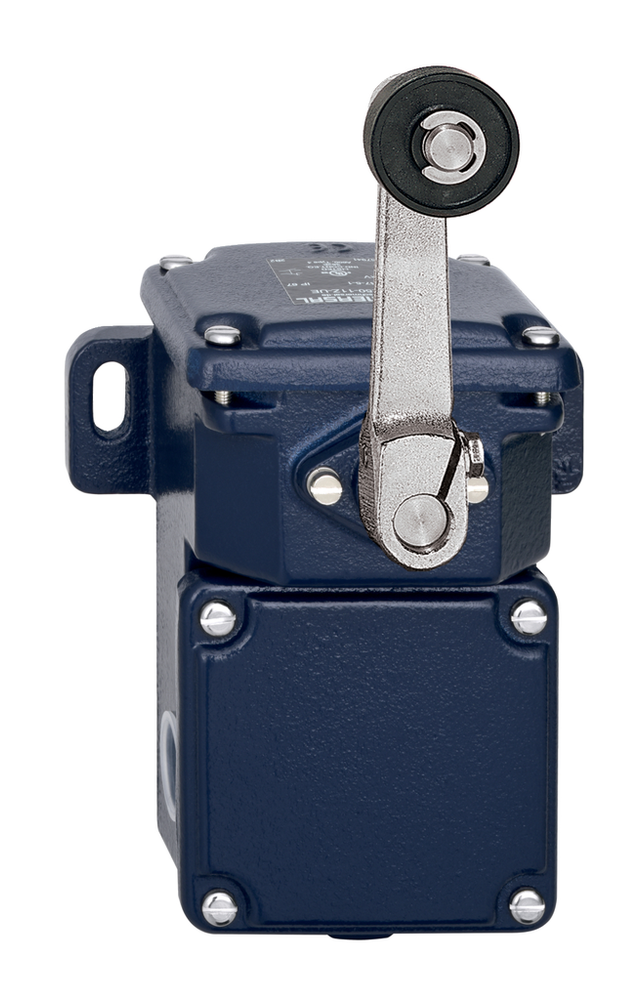

Schmersal 101057978 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Ambient conditions
- Ambient temperature
- -20 ... +60 °C
- Degree of protection
- IP65 | IP67 | IP66
- Material temperature resistance (short-term), maximum
- +90 °C
Ambient conditions - Insulation values
- Rated impulse withstand voltage U
- 6 kV
Approvals - Standards
- Certificates
- cULus | CCC
Electrical data
- Bounce duration, maximum
- 5 ms
- Material of the contacts, electrical
- Gold-plated silver (AgNi 15 + Au 0,3µm)
- Required rated short-circuit current
- 1,000 A
- Switching frequency
- 3,000 /h
- Switching principle
- Snap action
- Switchover time, maximum
- 35 ms
- Thermal test current
- 16 A
Electrical data - Contacts
- Current, Utilisation category AC-15
- 2.5 A
- Voltage, Utilisation category AC-15
- 230 VAC
General data
- Enclosure coating material
- painted
- Enclosure material
- Grey cast iron, galvanised
- Gross weight
- 4,623 g
- Standards
- EN IEC 60947-5-1
- Terminal (mechanical)
- Screw connection
General data - Features
- Number of normally closed (NC)
- 1
- Number of normally open (NO)
- 1
Mechanical data
- Actuating speed, maximum
- 1 m/s
- Contact opening
- 2 x 2.5 mm
- Impact energy, maximum
- 7 J
- Mechanical life, minimum
- 10,000,000 Operations
Mechanical data - Connection technique
- Cable entry
- 2 x M25 x 1.5
- Cable section, maximum
- 2.5 mm²
- Note (Cable section)
- All indications including the conductor ferrules.
Safety classification - Safety outputs
- B
- 2,000,000 Operations
