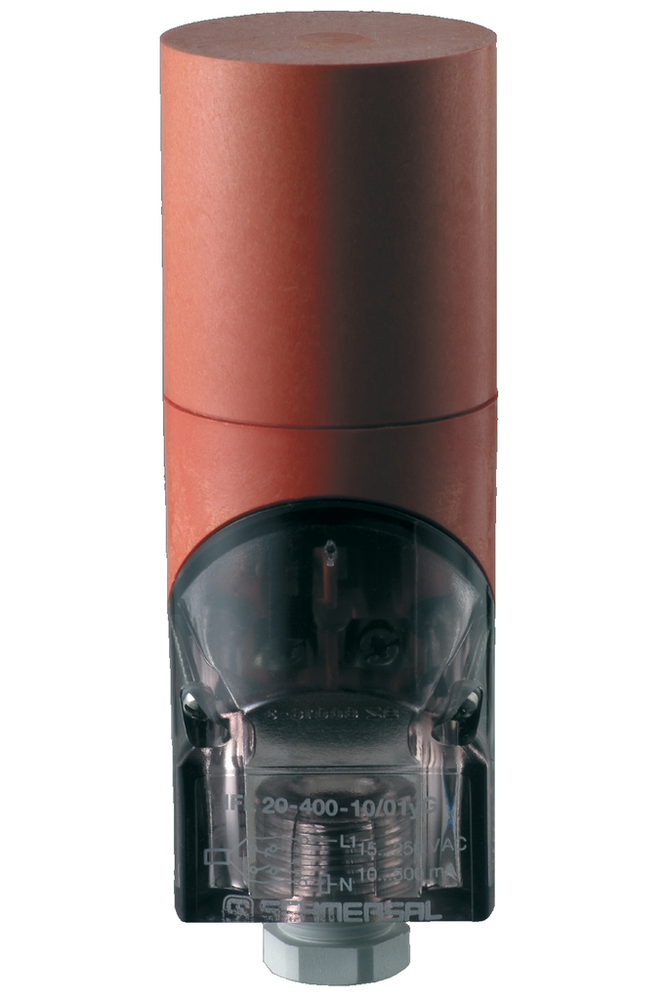

Schmersal 101056640

Ambient conditions

• Ambient temperature
  • -25 ... +70 °C
• Degree of protection
  • IP65
• Protection class
  • II

Ambient conditions - Insulation values

• Rated impulse withstand voltage U
  • 4 kV

Approvals - Standards

• Certificates
  • CCC

Electrical data

• Operating current
  • 500 mA
• Operating current, minimum
  • 10 mA
• Protection circuit integrated
  • inductive interference protection
• Rated operating voltage
  • 15 ... 250 VAC
• Rated supply frequency, maximum
  • 65 Hz
• Rated supply frequency, minimum
  • 45 Hz
• Switching element
  • NO contact or NC contact
• Switching frequency, approx.
  • 10 Hz

Electrical data - Digital Output

• Current at Voltage drop U
  • 0.2 A
• Current leakage I
  • 1 mA
• Design of control elements
  • Two-wire
• Voltage drop U
  • 4.5 V

General data

• Active area
  • Plastic
• Enclosure material
  • Plastic
• Gross weight
  • 186 g
• Housing construction form
  • Cylinder smooth
• Installation conditions (mechanical)
  • not flush
• Material of the terminal fixing
  • Plastic
• Standards
  • DIN VDE 0660-208 | EN IEC 60947-5-2

General data - Features

• Integral system diagnostics, status
  • Yes
• Number of cable wires
  • 2

Mechanical data - Connection technique

• Cable section, maximum
  • 2 x 1.5 mm²
• Termination
  • Screw connection

Mechanical data - Dimensions

• Diameter of sensor
  • 40 mm
• Height of sensor
  • 57 mm
• Length of sensor
  • 108 mm
• Width of sensor
  • 40 mm

Mechanical data - Switching distances according EN IEC 60947-5-3

• Nominal switching distance S
  • 20 mm

Note

• Note (General)
  • Programmable by repositioning the plug-in jumper at the terminal screws

Scope of delivery

• Note (scope of delivery, number and type)
  • Clamp H 40 is included in delivery

Status indication

• Note (Integral System Diagnostics, status )
  • yellow LED
