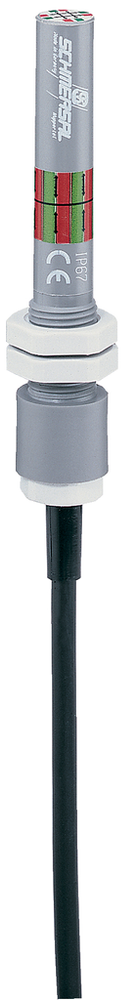

Schmersal 101055805
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
BN 65-10Z/1
Schmersal 101055805 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Accessory
- Recommendation (actuator)
- BP 10 | 2x BP 10 | BP 15 | 2x BP 15 | 2x BP 15/2 | BP 34 | BP 20 | BP 31 | BP 11 | BP 12 | BP 21
Ambient conditions
- Ambient temperature
- -25 ... +75 °C
- Degree of protection
- IP67
- Resistance to vibrations
- 10 … 55 Hz, amplitude 1 mm
- Resistant to vibration
- 30 g, on sine wave oscillation
- Restistance to shock
- 30 g, on sine wave oscillation
Approvals - Standards
- Certificates
- cULus
Electrical data
- Bounce duration, maximum
- 0.6 ms
- Bounce duration, minimum
- 0.3 ms
- Switching capacity, maximum
- 120 VA
- 120 W
- Switching current, maximum
- 3 A
- Switching element
- Normally open contact (NO)
- Switching frequency
- 1,080,000 /h
- Switching frequency, maximum
- 300 Hz
- Switching voltage, maximum
- 250 VAC
Electrical data - Digital Output
- Design of control elements
- Reed contacts
General data
- Enclosure material
- Glass-fibre, reinforced thermoplastic
- Gross weight
- 66 g
- Housing construction form
- Cylinder smooth
- Working principle
- Magnetic drive
General data - Features
- Number of normally open (NO)
- 1
Mechanical data
- Active area
- lateral
- Actuating element
- Magnet
- Actuating panels
- lateral
- Actuating speed, maximum
- 18 m/s
- Mechanical life, minimum
- 1,000,000,000 Operations
- Mounting
- central with threated flange
- Repeat accuracy R
- 0.3 mm
- Tightening torque of nuts, maximum
- 3 Nm
Mechanical data - Connection technique
- Length of cable
- 1 m
- Material of the Cable mantle
- H03VV-F
- Termination
- Cable
- Wire cross-section
- 0.75 mm
- 18 AWG
Mechanical data - Dimensions
- Diameter of sensor
- 13 mm
- Length of sensor
- 103 mm
- width across flats
- 22 BK
Mechanical data - Switching distances according EN IEC 60947-5-3
- Note (Switching distance Sn)
- Actuating distance up to 50 mm depending on version and actuating magnet
- Switching distance S
- 5 mm … 50 mm | BP 10 = 5 mm | 2 x BP 10 = 17 mm | BP 15 = 6 mm | 2 x BP 15/2 = 17 mm | BP 34 = 15 ... 20 mm | BP 20 = 20 mm | BP 31 = 20 mm | BP 11 = 20 mm | BP 21 = 25 ... 50 mm | 2 x BP 15 = 17mm | BP 12 = 10 … 30 mm
Scope of delivery
- Scope of delivery
- Actuator must be ordered separately.
