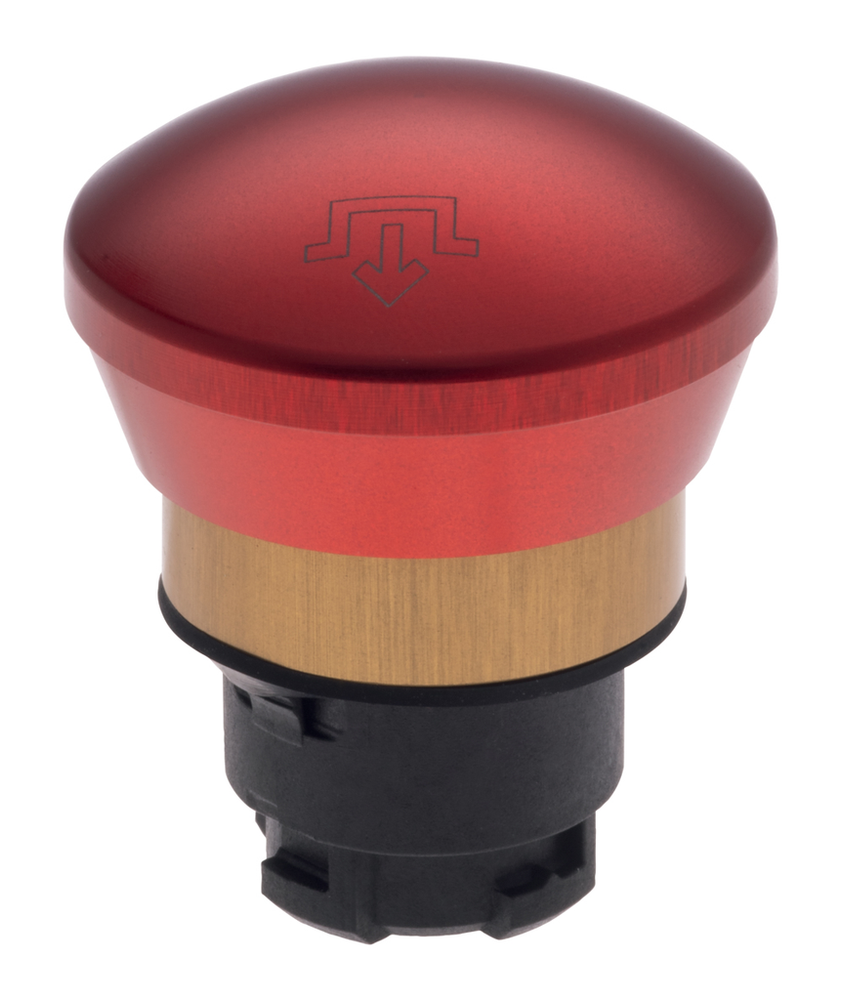

Schmersal 101029805
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
EDRRZ40RT
Schmersal 101029805 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Ambient conditions
- Ambient temperature
- -25 ... +80 °C
- Degree of protection
- IP65
- Restistance to shock
- 70 g / 4 ms
Approvals - Standards
- Certificates
- cULus
Electrical data
- Switching frequency
- 600 /h
General data
- Colour of the operating element
- Red
- Design
- Round
- Gross weight
- 73 g
- Material of the operators
- Aluminium
- Standards
- EN ISO 13850:2006
- Versions
- Pushbutton
General data - Features
- External snap mechanism
- Yes
- Fully insulated
- Yes
- Latching
- Yes
- Safety functions
- Yes
- Snap-action mechanism integrated
- No
Mechanical data
- Actuating stroke
- 5 mm
- Mechanical life, minimum
- 100,000 Operations
- Mounting
- mounting flange
- Tightening torque of the screw
- 0.6 Nm
- Unlocking
- Draw unlocking
Mechanical data - Dimensions
- Diameter of cap
- 38.5 mm
- Height
- 29 mm
- Mounting diameter
- 22.3 mm
- Thickness of the front panel, maximum
- 6 mm
- Thickness, of the front panel, minimum
- 1.5 mm
Specifications
- Height
- 29 mm
