Description
SEPK02.0.3.1.22/95

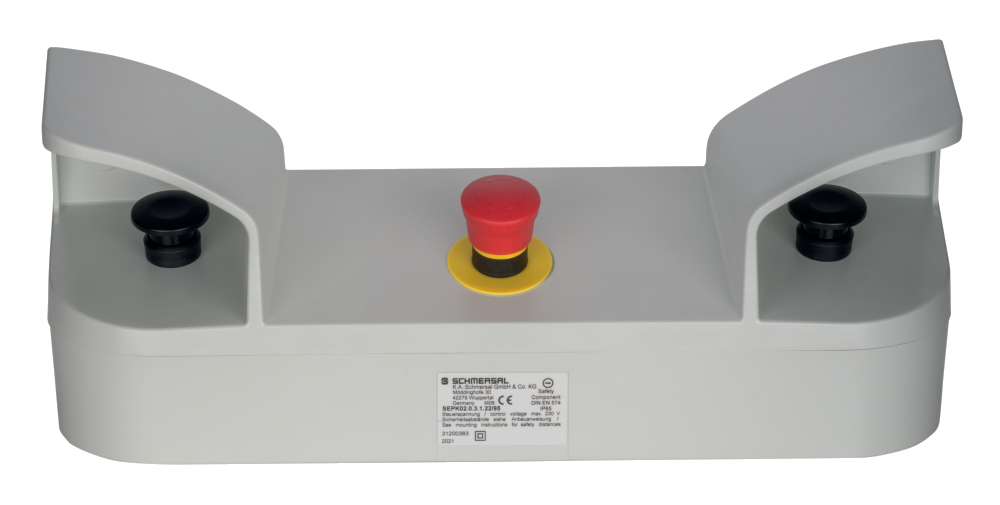

Schmersal 101027370 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Accessory
- Recommendation (product combination)
- SRB201ZH | SRB200ZHX1 | SRB 201ZHX3
Ambient conditions
- Degree of protection
- IP65
Ambient conditions - Insulation values
- Rated insulation voltage U
- 440 V
Approvals - Standards
- Certificates
- cULus
Electrical data
- Thermal test current
- 10 A
- Utilisation category AC-15
- 8 A
- 250 VAC
- Utilisation category DC-13
- 24 VDC
- 5 A
General data
- Enclosure material
- Plastic
- Gross weight
- 1,900 g
- Standards
- EN ISO 13850 | EN ISO 13851 | EN IEC 60947-5-1 | EN IEC 60947-5-5 | EN IEC 60947-1
General data - Features
- Construction kit possible
- Yes
- Number of Emergency Stop button
- 1
- Number of normally closed (NC)
- 1
- Number of normally open (NO)
- 1
- Number of operating push buttons (positioning parts)
- 2
- Suitable for EMERGENCY-OFF
- Yes
Mechanical data
- Mechanical life, minimum
- 10,000,000 Operations
Mechanical data - Connection technique
- Cable section, maximum
- 1.5 mm²
- Termination
- Screw terminals M20 x 1.5
Mechanical data - Dimensions
- Depth
- 137 mm
- Height
- 185 mm
- Length x Width x Height
- Operating push buttons (positioning parts): 55 mm | Emergency stop pushbutton: 40 mm
- Width
- 469 mm
Note
- Note (General)
- 1 NO/1 NC contact per unit, 1 NO/1 NC contact for Emergency-Stop | Optional: actuators with low actuating force | 8 knockouts for additional operating devices Ø 22.3 mm
Specifications
- Depth
- 137 mm
- Height
- 185 mm
- Width
- 469 mm
