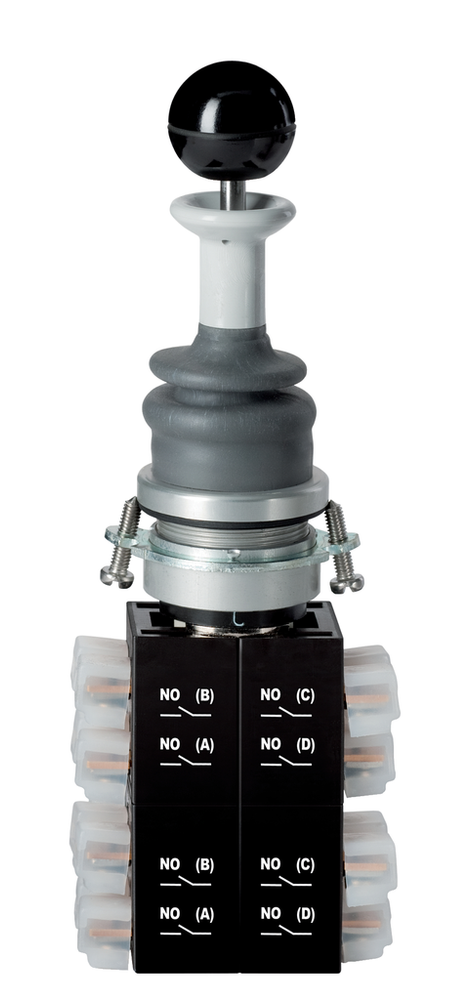

Schmersal 101019461
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
WKTE52
Schmersal 101019461 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Ambient conditions
- Ambient temperature
- -25 ... +80 °C
- Degree of protection
- IP65 | IP67
- Resistance to vibrations
- 10 … 200 Hz, with 20 g
- Restistance to shock
- 110 g / 4 ms - 30 g / 18 ms
Ambient conditions - Insulation values
- Degree of pollution
- 3
- Rated impulse withstand voltage U
- 4 kV
- Rated insulation voltage U
- 400 V
Approvals - Standards
- Certificates
- cURus
Electrical data
- Switching element
- 2 NO contacts / 2 NO contacts / 2 NO contacts / 2 NO contacts
- Switching frequency
- 1,200 /h
- Switching principle
- Slow action
- Thermal test current
- 10 A
- Utilisation category AC-15
- 250 VAC
- 8 A
- Utilisation category DC-13
- 24 VDC
- 5 A
General data
- Colour of the bellows
- Black
- Colour of the front ring
- Silver
- Gross weight
- 230 g
- Installation conditions (mechanical)
- arbitrarily
- Material of the bellows
- Rubber
- Material of the front ring
- Aluminium - anodised
- Material thickness of the sealing bellows
- 1 mm
- Standards
- EN IEC 60947-5-1 | EN IEC 60947-1
General data - Features
- External applications
- Yes
- Galvanically separated contact bridges
- Yes
- Number of auxiliary contacts
- 8
- Number of directions
- 4
- Number of normally open (NO) per direction
- 2
- Number of switching stages
- 4
- Number of switch positions
- 4
- Probing possible
- Yes
- Return to zero position
- Yes
Mechanical data
- Actuating force, approx.
- 11 N
- Latching position
- left | right | bottom | above
- Mechanical life, minimum
- 1,000,000 Operations
- Mounting
- mounting flange
Mechanical data - Connection technique
- Cable section, maximum
- 2.5 mm²
- Cable section, minimum
- 0.5 mm²
- Note (Cable section)
- All indications including the conductor ferrules.
- Termination
- Screw terminals M20 x 1.5
Mechanical data - Dimensions
- Diameter for the Installation to EN 60947-1
- 30.5 + 0.5 mm
- Length of the actuator
- 90 mm
- Mounting depth
- 91 mm
- Mounting diameter
- 30.5 mm
- Spacing
- 80 x 80 mm
- Thickness of the front panel, maximum
- 10 mm
- Thickness, of the front panel, minimum
- 1.5 mm
Note
- Notice (switch position)
- Position A, B, C, D
