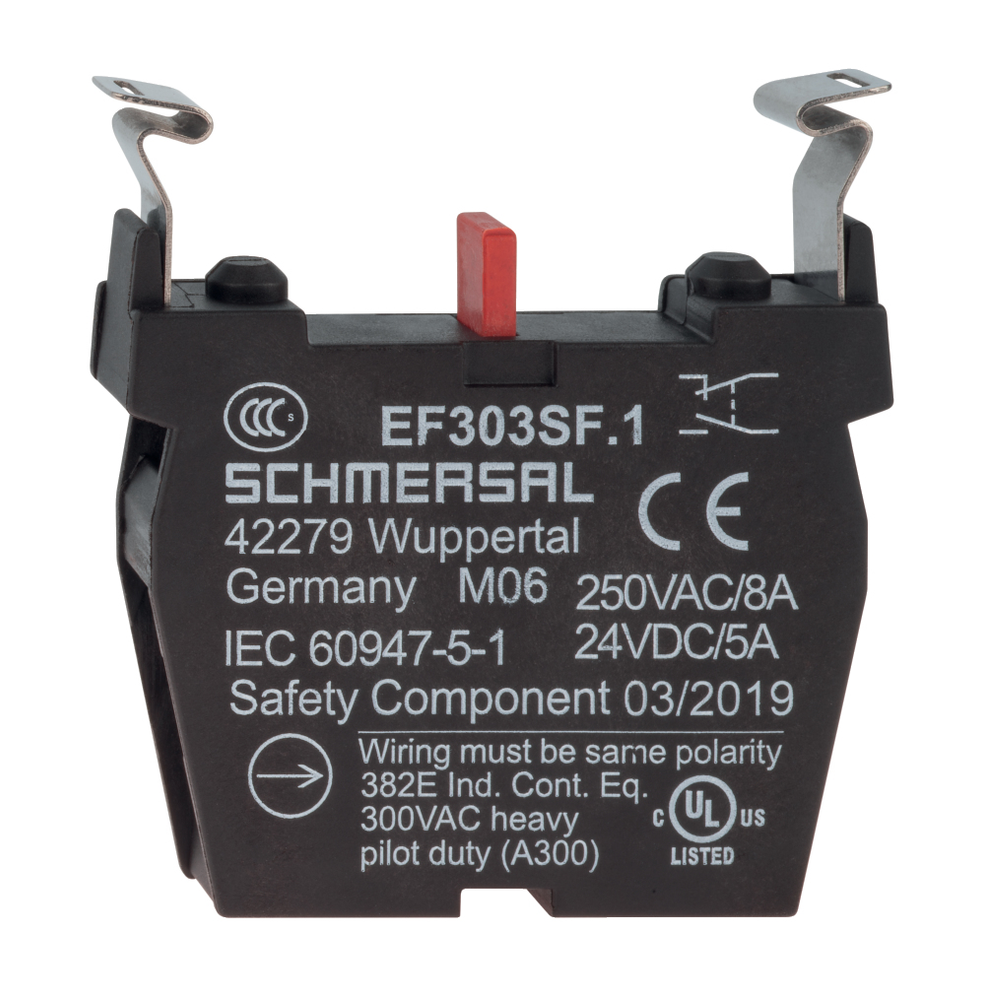

Schmersal 101006587
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
EF303SF.1
Schmersal 101006587 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Ambient conditions
- Ambient temperature
- -25 ... +80 °C
- Degree of protection of clips or terminals
- IP20
- Degree of protection of the switch rooms
- IP40
- Resistant to vibration
- Resistance to vibration: 20 g / 10…200 Hz
- Restistance to shock
- 110 g / 4 ms
Ambient conditions - Insulation values
- Rated insulation voltage U
- 400 V
Approvals - Standards
- Certificates
- cULus | CCC
Electrical data
- Bounce duration, maximum
- 5 ms
- Material of the contacts, electrical
- Silver
- Suitable for low-voltages
- ≥ 5 V / ≥ 3.2 mA
- Switching element
- NC contact, NO contact
- Switching frequency
- 1,200 /h
- Switching principle
- Slow action with security spring
- Thermal test current
- 10 A
- Utilisation category AC-15
- 8 A
- 230 VAC
- Utilisation category DC-13
- 24 VDC
- 5 A
General data
- Contact labelling
- 11-12 | 23-24
- Design
- Slow action
- Enclosure material
- Plastic, glass-fibre reinforced thermoplastic, self-extinguishing
- Gross weight
- 18 g
- Standards
- EN IEC 60947-5-1 | EN IEC 60947-1
- Versions
- Contact element
General data - Features
- Number of normally closed (NC)
- 1
- Number of normally open (NO)
- 1
Mechanical data
- Contact opening
- 3 mm NO | 3 mm NC
- Installation instructions
- pluggable
- Mechanical life, minimum
- 10,000,000 Operations
- Mounting flange position
- 1
- Note Bounce duration
- Bounce duration at an Actuating speed of 100mm/s
- Positive break travel
- 2 mm
Mechanical data - Connection technique
- Termination
- Plug-in terminal
Mechanical data - Dimensions
- Depth
- 60 mm
- Width
- 10 mm
Specifications
- Depth
- 60 mm
- Length
- 46 mm
- Width
- 10 mm
