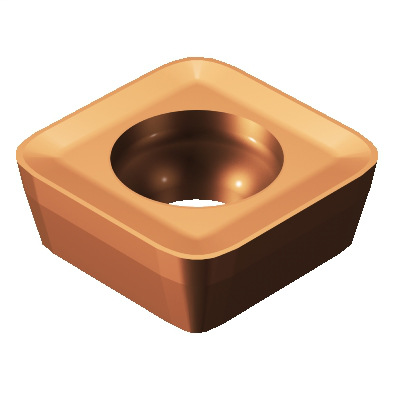

Sandvik R210-14 05 14E-PM 1030
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Sandvik R210-14 05 14E-PM 1030 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Specifications
- Chip Breaker Manufacturers Designation
- PM
- Coating
- PVD;TiAlN
- Coating Composition
- TiAlN
- Corner Radius Equivalent (Imperial)
- 0.137795 inch
- Corner Radius Equivalent (Metric)
- 3.5 mm
- Corner Radius (Imperial)
- 0.055118 inch
- Corner Radius (Metric)
- 1.4 mm
- Coropak
- 06.2
- CoroPak
- 06.2
- Country of Origin
- US
- Cutting Edge Angle Major (Metric)
- 10 deg
- Cutting Edge Effective Length (Imperial)
- 0.426378 inch
- Cutting Edge Effective Length (Metric)
- 10.83 mm
- D009_Coating_Composition
- TiAlN
- D009_Coating_Process
- PVD
- EAN Number
- 12179440
- Grade
- 1030
- 1030
- IC Code
- 18000
- Inscribed Circle Diameter (Imperial)
- 0.574803 inch
- Inscribed Circle Diameter (Metric)
- 14.6 mm
- Insert Size
- 1405
- Insert Size And Shape
- CoroMill 210 -1405 s=5.26
- Insert Style
- R210
- Insert Thickness (Imperial)
- 0.207087 inch
- Insert Thickness (Metric)
- 5.26 mm
- Interface Description and Size
- COR: CoroMill 210 -1405 s=5,26
- ISO Code
- R210-14 05 14E-PM 1030
- Itemtext
- Insert
- Itemtype
- 10
- Lifecyclestate
- 20
- Operation Type
- Medium
- Ordering Code
- R210-14 05 14E-PM 1030
- Ordering Code Packed
- R210-140514E-PM1030
- Pack Size
- 10
- Product Category Description
- Standard
- Substrate Type
- WC
- Tpc Id
- INSMILG
- Tpc Name
- General
- Weight Of Item (Imperial)
- 0.0299 lbs
- Weight Of Item (Metric)
- 0.0136 kg
- Wiper Edge Length (Imperial)
- 0.027953 inch
- Wiper Edge Length (Metric)
- 0.71 mm
- Wiper Edge Radius (Imperial)
- 1.9685 inch
- Wiper Edge Radius (Metric)
- 50 mm
