Sandvik C6-CSDNN-00065-12-4
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

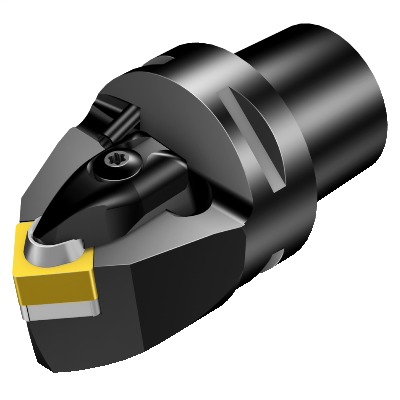

C6-CSDNN-00065-12-4 T-Max cutting unit for turning
Sandvik C6-CSDNN-00065-12-4 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Specifications
- Adaptive Interface Machine Direction
- Coromant Capto (bolt and segment clamping) -size C6
- Body Angle Machine Side (Metric)
- 0 deg
- Body Angle Workpiece Side (Metric)
- 0 deg
- Body Material Code
- Steel
- Connection Diameter (Imperial)
- 2.48032 inch
- Connection Diameter (Metric)
- 63 mm
- Coolant Entry Style Code
- 3: axial concentric and radial entry
- Coolant Exit Style Code
- 6: decentral exit with nozzles, adjustable
- Coolant Pressure (Imperial)
- 145.038 lbf/in2
- Coolant Pressure (Metric)
- 10 bar
- Coropak
- 02.2
- CoroPak
- 02.2
- Country of Origin
- SE
- D008_MachineSide Compatible Interface
- Coromant Capto (bolt and segment clamping) -size C6
- EAN Number
- 11414200
- Functional Height (Imperial)
- 0 inch
- Functional Height (Metric)
- 0 mm
- Functional Length (Imperial)
- 2.55905 inch
- Functional Length (Metric)
- 65 mm
- Functional Width (Imperial)
- 0.011811 inch
- Functional Width (Metric)
- 0.3 mm
- IC Code
- 14000
- Inclination Angle (Metric)
- -6 deg
- Insert Compatibility
- SNGN 12 07 08; SNG 452
- Interface Description and Size
- Capto (segment&bolt) -size C6;ISO: SNGN 120708
- ISO Code
- C6-CSDNN-00065-12-4
- Itemtext
- Tool Item
- Itemtype
- 11
- Lifecyclestate
- 20
- Master Insert Identification
- SNGN 12 07 08
- Ordering Code
- C6-CSDNN-00065-12-4
- Ordering Code Packed
- C6-CSDNN-00065-12-4
- Overhang Maximum (Imperial)
- 2.55905 inch
- Overhang Maximum (Metric)
- 65 mm
- Part2 Of Cutting Item Interface Identifiers
- SNGN 120708
- Product Category Description
- Standard
- Rake Angle Orthogonal (Metric)
- -6 deg
- Ramping Angle Maximum (Metric)
- 40 deg
- Tool Cutting Edge Angle (Metric)
- 45 deg
- Tool Lead Angle (Metric)
- 45 deg
- Torque (Imperial)
- 2.87649 ft lbs
- Torque (Metric)
- 3.9 Nm
- Tpc Id
- TRNG_IND
- Tpc Name
- Turning Indexable
- Weight Of Item (Imperial)
- 2.6554 lbs
- Weight Of Item (Metric)
- 1.207 kg
