Sandvik C4-391.05-22 025
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

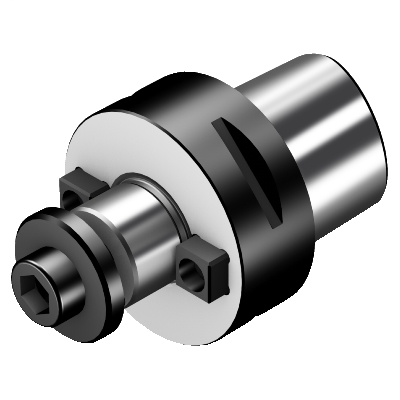

C4-391.05-22 025 Coromant Capto to arbor adaptor
Sandvik C4-391.05-22 025 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Specifications
- Adaptive Interface Machine Direction
- Coromant Capto (bolt and segment clamping) -size C4
- Adaptive Interface Workpiece Direction
- Arbor -ISO 6462 -A/B (center bolt/washer) -metric: 22
- Body Diameter (Imperial)
- 1.5748 inch
- Body Diameter (Metric)
- 40 mm
- Body Half Taper Angle (Metric)
- 0 deg
- Body Length (Imperial)
- 0.984252 inch
- Body Length (Metric)
- 25 mm
- Body Material Code
- Steel
- Connection Diameter (Imperial)
- 0.866142 inch
- 1.5748 inch
- Connection Diameter (Metric)
- 22 mm
- 40 mm
- Coolant Entry Style Code
- 3: axial concentric and radial entry
- Coolant Exit Style Code
- 1: axial concentric exit
- Coolant Pressure (Imperial)
- 1160.3 lbf/in2
- Coolant Pressure (Metric)
- 80 bar
- Coropak
- 91.3
- CoroPak
- 91.3
- Country of Origin
- DE
- EAN Number
- 10472324
- Functional Length (Imperial)
- 0.984252 inch
- Functional Length (Metric)
- 25 mm
- IC Code
- 19000
- Interface Description and Size
- Arbor -ISO 6462 -A/B (center bolt/washer) -metric: 22;Capto (segment&bolt) -size C4
- ISO Code
- C4-391.05-22 025
- Itemtext
- Adaptive Item
- Itemtype
- 14
- Lifecyclestate
- 30
- Ordering Code
- C4-391.05-22 025
- Ordering Code Packed
- C4-391.05-22025
- Product Category Description
- Standard
- Torque (Imperial)
- 33.1903 ft lbs
- Torque (Metric)
- 45 Nm
- Tpc Id
- RSYM_XD
- Tpc Name
- Adaptor - x diameters
- Weight Of Item (Imperial)
- 0.889 lbs
- Weight Of Item (Metric)
- 0.4041 kg
