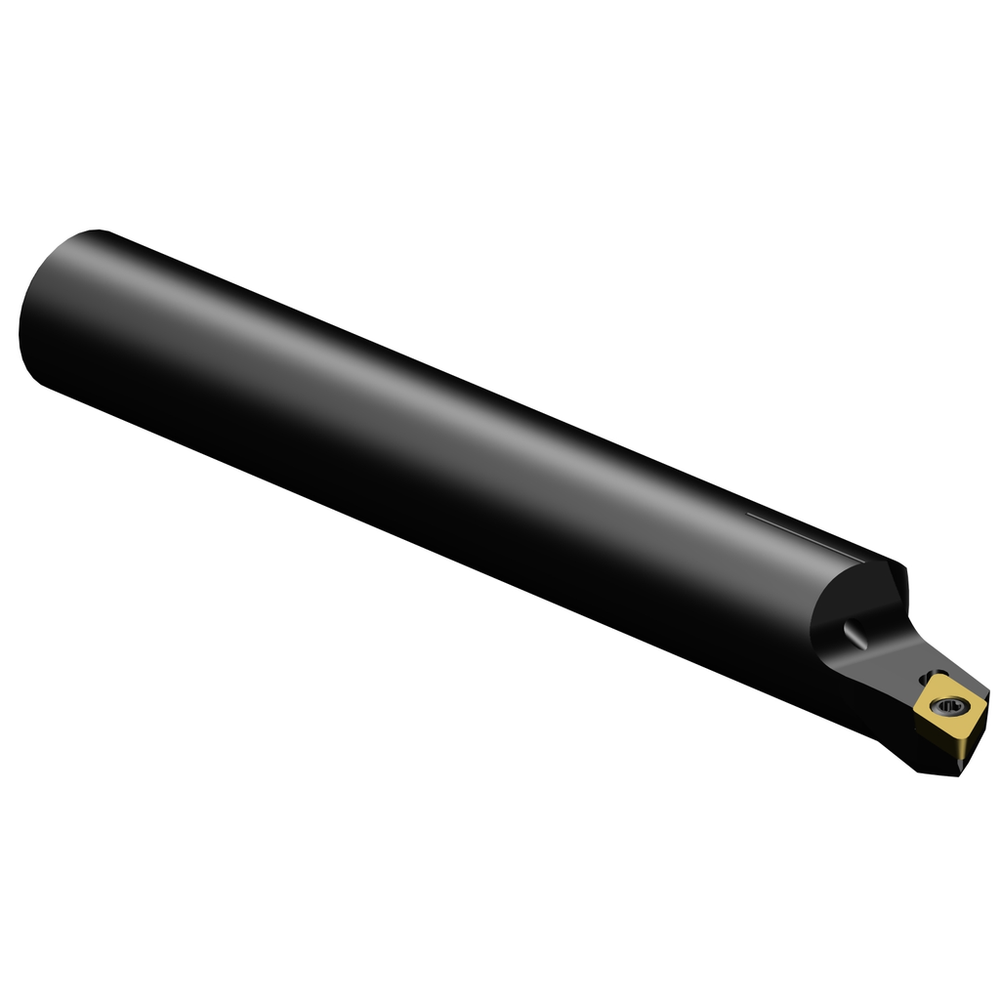

Sandvik A16K-SDXCL 07-R
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Sandvik A16K-SDXCL 07-R is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Specifications
- Adaptive Interface Machine Direction
- Cylindrical shank without clamping features -metric: 16.00
- Body Diameter (Imperial)
- 0.629921 inch
- Body Material
- Steel
- Connection Diameter (Imperial)
- 0.629921 inch
- Coolant Pressure (Imperial)
- 580.151 lbf/in2
- Damping Property
- No
- eClass - 11.0
- 21181001
- Functional Length (Imperial)
- 4.92126 inch
- Functional Width (Imperial)
- 0.354331 inch
- Hand
- L
- Inclination Angle
- -3 deg
- Item Description
- Tool Item
- Location Aid Property
- Yes
- Master Insert Identification
- DCMT 07 02 04
- Maximum Overhang (Imperial)
- 2.51969 inch
- Maximum Ramping Angle
- 5 deg
- Minimum Bore Diameter (Imperial)
- 0.787402 inch
- Minimum Overhang (Imperial)
- 0.944882 inch
- Orthogonal Rake Angle
- 3 deg
- Sensor Embedded Property
- Yes
- Tool Lead Angle
- -27.5 deg
- Torque (Imperial)
- 0.663806 ft lbf
- Weight
- 0.328489 lbs (0.149 kg)
- Weight Of Item (Imperial)
- 0.328489 lbs
