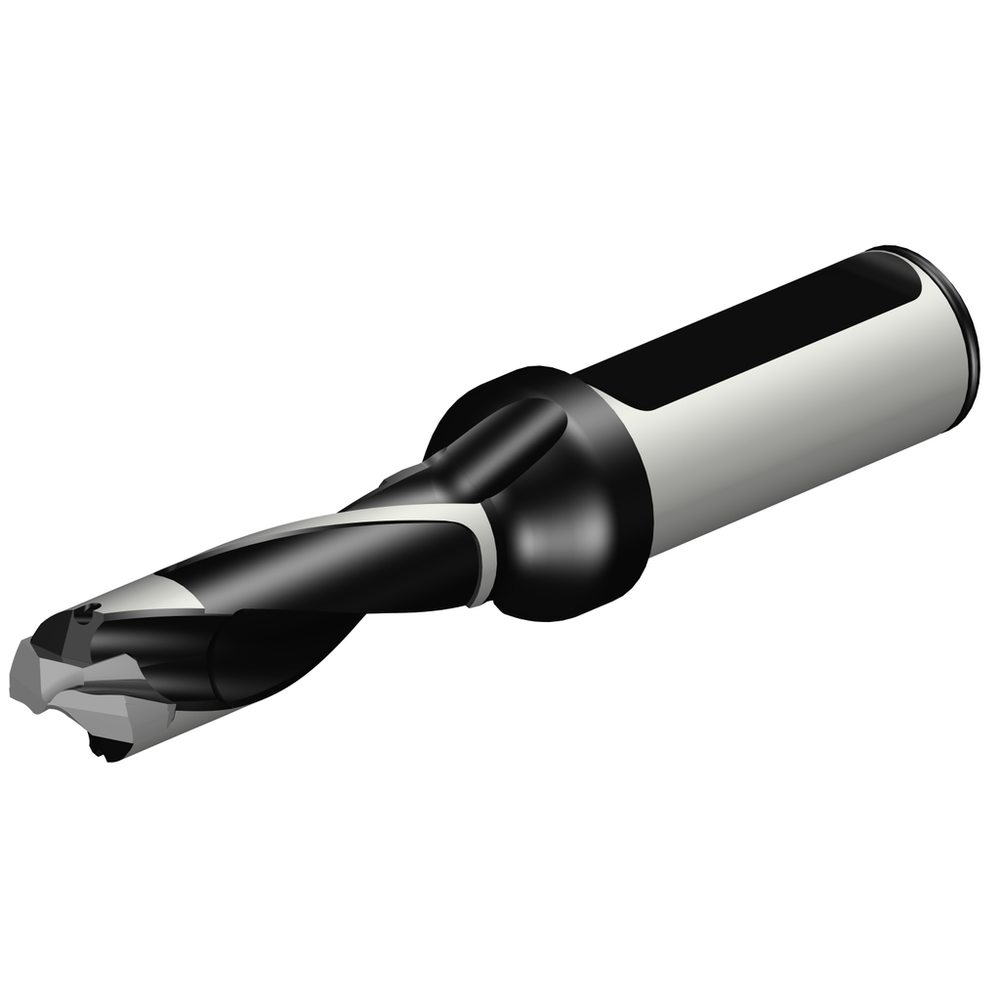

Sandvik 870-1600-16L20-3
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Sandvik 870-1600-16L20-3 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Specifications
- Achievable Hole Tolerance
- H9
- Adaptive Interface Machine Direction
- Cylindrical shank (ISO9766 drill shank) -metric: 20
- Body Length (Imperial)
- 2.20472 inch
- Connection Diameter (Imperial)
- 0.787402 inch
- Coolant Pressure (Imperial)
- 145.038 lbf/in2
- Cutting Diameter (Imperial)
- 0.665354 inch
- DepthxDiam Ratio
- 3xD
- eClass - 11.0
- 21180201
- Functional Length (Imperial)
- 2.73307 inch
- Item Description
- Tool Item
- Maximum Cutting Diameter (Imperial)
- 0.668898 inch
- Minimum Cutting Diameter (Imperial)
- 0.629921 inch
- Overall Length (Imperial)
- 4.80315 inch
- Point Length (Imperial)
- 0.101575 inch
- Sensor Embedded Property
- Yes
- Torque (Imperial)
- 0.885075 ft lbf
- Usable Length Diameter Ratio
- 3.169230769231
- Usable Length (Imperial)
- 2.10866 inch
- Weight
- 0.432106 lbs (0.196 kg)
- Weight Of Item (Imperial)
- 0.432106 lbs
