Sandvik 1P260-0318-XA 1620
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

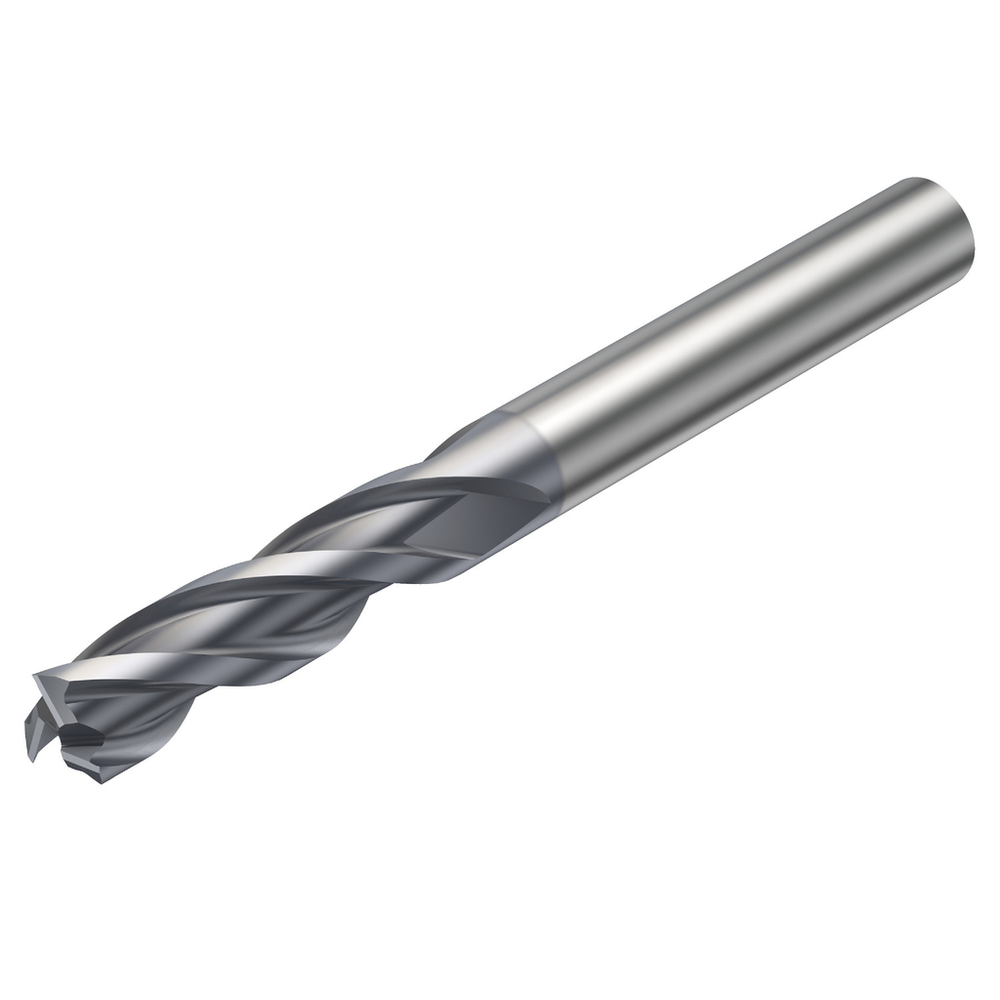

CoroMill® Plura solid carbide end mill for Heavy roughing, 1P260-0318-XA 1620
Sandvik 1P260-0318-XA 1620 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Specifications
- Adaptive Interface Machine Direction
- Cylindrical shank without clamping features -inch: 1/8
- (APMXFFW) Depth Of Cut Maximum
- 0.5 inch (12.7 mm)
- (APMXPFW) Depth Of Cut Maximum
- 0.5 inch (12.7 mm)
- Axial Rake Angle
- 13.5 deg
- Center Cutting Capability
- Yes
- Connection Diameter
- 0.125 inch (3.175 mm)
- Connection Diameter Tolerance
- h6
- Coolant Entry Style
- 0: without coolant
- Country of Origin
- Italy
- Cutting Diameter
- 0.125 inch (3.175 mm)
- Cutting Diameter Face Contact
- 0.125 inch (3.175 mm)
- Depth Of Cut Maximum
- 0.5 inch (12.7 mm)
- Flute Helix Angle
- 30 deg
- Functional Length
- 2 inch (50.8 mm)
- Grade
- 1620
- ISO Material Classification Level All
- Steel;Stainless Steel;Cast Iron;Super-alloys & Titanium
- Lower Cutting Diameter Tolerance
- -0.00189 inch (-0.048 mm)
- Maximum Ramping Angle
- 7 deg
- Maximum Regrinds
- 1
- Peripheral Effective Cutting Edge Count
- 3
- Radial Rake Angle
- 10.5 deg
- Rotational Speed Maximum
- 80000 1/min
- Sensor Embedded Property
- No
- Through Hole Function Property
- Yes
- Usable Length
- 0.5 inch (12.7 mm)
- Weight
- 0.017637 lbs (0.008 kg)
