Sandvik 1P220-0280-XA 1630
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

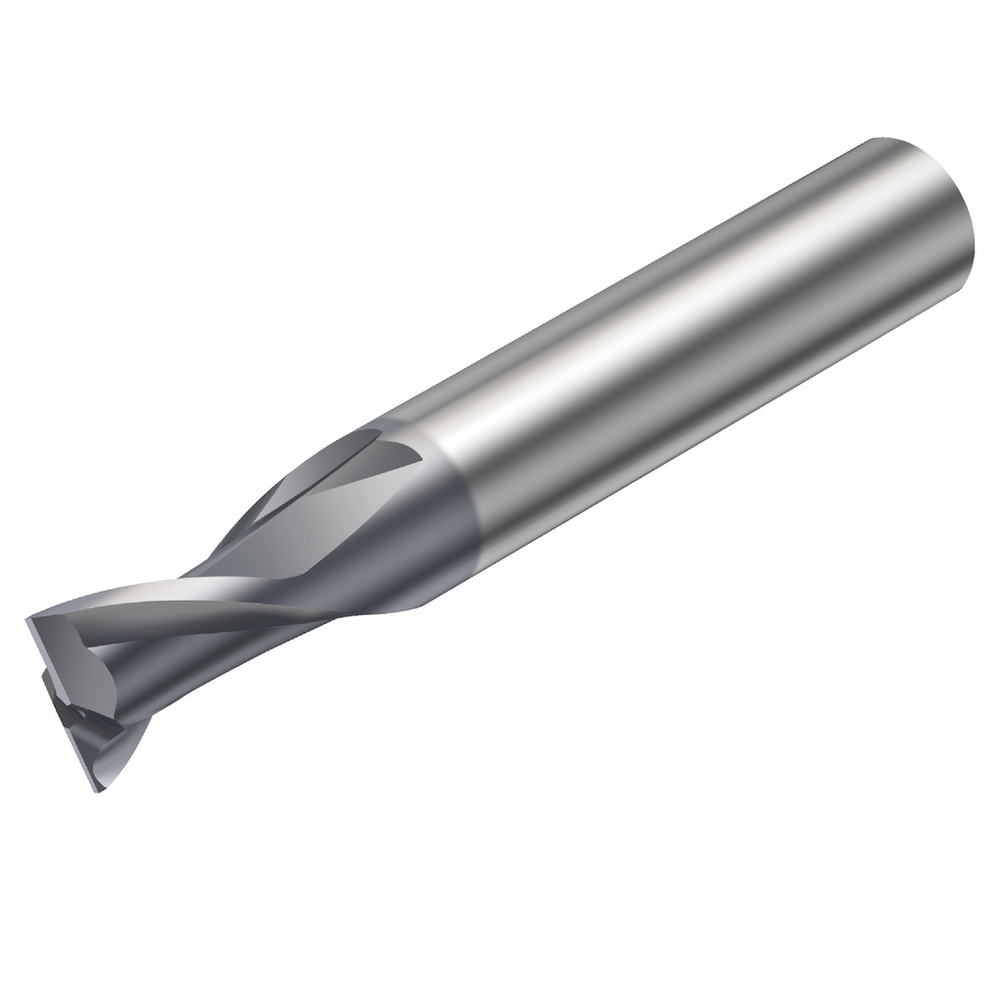

CoroMill® Plura solid carbide end mill for Heavy roughing, 1P220-0280-XA 1630
Sandvik 1P220-0280-XA 1630 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Specifications
- Adaptive Interface Machine Direction
- Cylindrical shank (DIN6535-HA) -metric: 6
- (APMXFFW) Depth Of Cut Maximum
- 0.177165 inch (4.5 mm)
- (APMXPFW) Depth Of Cut Maximum
- 0.177165 inch (4.5 mm)
- Axial Rake Angle
- 5.5 deg
- Basic Standard Group
- DIN 6527 K
- Body Half Taper Angle
- 30 deg
- Center Cutting Capability
- Yes
- Connection Diameter
- 0.23622 inch (6 mm)
- Connection Diameter Tolerance
- h6
- Coolant Entry Style
- 0: without coolant
- Corner Chamfer
- 45 deg
- Corner Chamfer Width
- 0.00315 inch (0.08 mm)
- Country of Origin
- Italy
- Cutting Diameter
- 0.110236 inch (2.8 mm)
- Cutting Diameter Face Contact
- 0.103937 inch (2.64 mm)
- Depth Of Cut Maximum
- 0.177165 inch (4.5 mm)
- Flute Helix Angle
- 30 deg
- Functional Length
- 1.9685 inch (50 mm)
- Grade
- 1630
- ISO Material Classification Level All
- Steel;Stainless Steel;Cast Iron;Super-alloys & Titanium
- Lower Cutting Diameter Tolerance
- -0.00126 inch (-0.032 mm)
- Maximum Ramping Angle
- 9 deg
- Peripheral Effective Cutting Edge Count
- 2
- Radial Rake Angle
- 9 deg
- Rotational Speed Maximum
- 80000 1/min
- Sensor Embedded Property
- No
- Through Hole Function Property
- Yes
- Upper Cutting Diameter Tolerance
- -0.000787 inch (-0.02 mm)
- Usable Length
- 0.177165 inch (4.5 mm)
- Weight
- 0.05732 lbs (0.026 kg)
