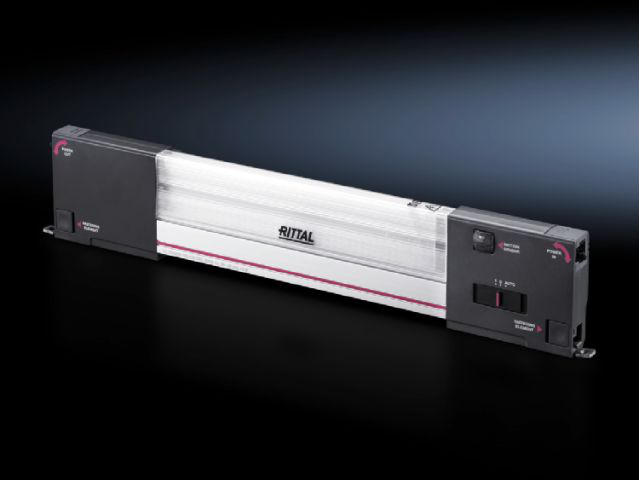

Rittal SZ 2500.300
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
Next Day Delivery
Based In The USA
Description
Rittal SZ 2500.300 is now available new, surplus, and used from Williams Automation.
If you need a specific firmware or series relating to this item, please call or email us with your request.
We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you require one.
Please note we offer UPS Next Day Air shipping for all orders. Please be sure to select next day shipping at checkout, and we will provide same-day shipment.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Color
- Enclosure
- RAL 7016
Dimensions
- Depth
- 37 mm ( 1.5" )
- Height
- 85 mm ( 3.3" )
- Width
- 437 mm ( 17" )
Material
- Light body
- Extruded aluminum
- Light cover
- Polycarbonate (halogen-free)
- Light ends
- PC-ABS (halogen-free)
Operating temperature
- Operation (environment)
- -20 °C...+55 °C
Specifications
- eCl@ss 6.0/6.1
- 27189241
- eCl@ss 8.0/8.1
- 27189241
- Installation options
- Directly onto the enclosure section with 25 mm pitch pattern
- Light color
- 4000 K (neutral white)
- Luminous flux
- 1,200 lm
- Motion sensor
- yes
- Overvoltage category
- II
- Power consumption
- 13 W
- Protection category
- II (total insulation)
- Protection category IP to IEC 60 529
- IP 20
- Rated impulse withstand voltage, phase to earth
- 2500 V AC
- Rated insulation voltage
- 300 V AC
- Rated operating voltage
- 100 V - 240 V, 1~, 50 Hz/60 Hz
- Supply includes
- Assembly screws
- Version
- with motion detector
