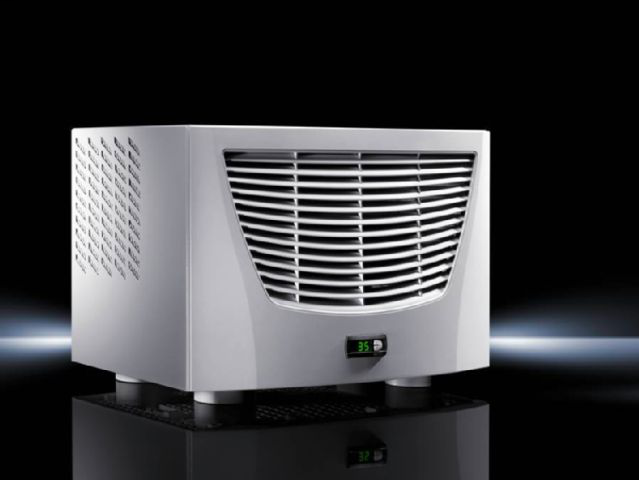

Rittal SK 3385.600

Air throughput (unimpeded air flow)

• External circuit
  • 1,760 m³/h ( 1,035.9cfm )
• Internal circuit
  • 470 m³/h ( 276.6cfm )

Dimensions

• Depth
  • 475 mm ( 19" )
• Height
  • 417 mm ( 16" )
• Width
  • 597 mm ( 24" )

Rated current max.

• At 50 Hz
  • 5.9 A
• At 60 Hz
  • 6.3 A

Rated power Pel

• L 35 L 35 at 50 Hz
  • 0.95 kW
• L 35 L 35 at 60 Hz
  • 1.14 kW
• L 35 L 50 at 50 Hz
  • 1.07 kW
• L 35 L 50 at 60 Hz
  • 1.23 kW

Refrigerant/cooling medium

• CO₂ equivalent (CO₂e)
  • 1.29 t
• Global Warming Potential (GWP)
  • 1,430
• Quantity
  • 0.9 kg ( 2lb. )
• Refrigerant
  • R134a

Specifications

• Benefits
  • May be linked to the IoT interface via the Blue e IoT adaptor
• Color
  • RAL 9007
• Duty cycle
  • 100 %
• eCl@ss 6.0/6.1
  • 27180704
• eCl@ss 8.0/8.1
  • 27180704
• Energy efficiency ratio (EER) 50/60 Hz L35 L35
  • 2,09  / 1,88
• Material
  • Stainless steel 1.4301 (AISI 304)
• Miniature circuit-breaker/fuse
  • 10 A
• Note
  • Due to its low noise level, the roof-mounted cooling unit 3273.500 is also suitable for use in office applications.
• Permissible operating pressure (p. max.)
  • 28 bar ( 406PSI )
• Rated operating voltage
  • 230 V, 1~, 50 Hz/60 Hz
• Temperature control
  • e-Comfort Controller (factory setting +35 °C)
• Type of connection (electrical)
  • Plug-in terminal strip
• Variant
  • roof-mounted

Start-up current (max.)

• At 50 Hz
  • 19.7 A
• At 60 Hz
  • 17.9 A

Temperature range

• Operation (environment)
  • +10 °C...+55 °C
• Setting range
  • +20 °C...+55 °C
• Storage
  • -40 °C...+70 °C

Total cooling output to DIN EN 14511

• L 35 L 35 at 50 Hz
  • 2 kW ( 6,824BTU )
• L 35 L 35 at 60 Hz
  • 2.14 kW ( 7,301BTU )
• L 35 L 50 at 50 Hz
  • 1.41 kW ( 4,811BTU )
• L 35 L 50 at 60 Hz
  • 1.51 kW ( 5,152BTU )
