Rittal SK 3303.500
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

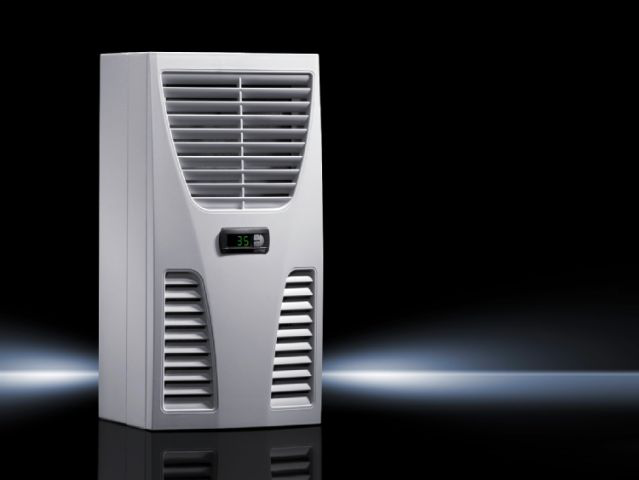

Energy-efficient Blue e wall-mounted cooling units in output categories 500 W to 750 W with e-Comfort controller integrated as standard and RiNano coating on the condenser.Wall-Mounted Cooling Unit TopTherm Blue e
Rittal SK 3303.500 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Air throughput (unimpeded air flow)
- External circuit
- 315 m³/h ( 185.4cfm )
- Internal circuit
- 265 m³/h ( 156cfm )
Dimensions
- Depth
- 210 mm ( 8.3" )
- Height
- 550 mm ( 22" )
- Width
- 280 mm ( 11" )
Rated current max.
- At 50 Hz
- 2.6 A
- At 60 Hz
- 2.6 A
Rated power Pel
- L 35 L 35 at 50 Hz
- 0.39 kW
- L 35 L 35 at 60 Hz
- 0.41 kW
- L 35 L 50 at 50 Hz
- 0.45 kW
- L 35 L 50 at 60 Hz
- 0.42 kW
Refrigerant/cooling medium
- CO₂ equivalent (CO₂e)
- 0.24 t
- Global Warming Potential (GWP)
- 1,430
- Quantity
- 0.17 kg ( 0.4lb. )
- Refrigerant
- R134a
Specifications
- Benefits
- May be linked to the IoT interface via the Blue e IoT adaptor
- Color
- RAL 7035
- eCl@ss 6.0/6.1
- 27180704
- eCl@ss 8.0/8.1
- 27180704
- Energy efficiency ratio (EER) 50/60 Hz L35 L35
- 1,4 / 1,21
- Material
- Carbon steel
- Miniature circuit-breaker/fuse
- 10 A
- Permissible operating pressure (p. max.)
- 28 bar ( 406PSI )
- Rated operating voltage
- 230 V, 1~, 50 Hz/60 Hz
- Temperature control
- e-Comfort Controller (factory setting +35 °C)
- Variant
- wall-mounted
Start-up current (max.)
- At 50 Hz
- 5.1 A
- At 60 Hz
- 6.4 A
Temperature range
- Operation (environment)
- +10 °C...+55 °C
- Setting range
- +20 °C...+55 °C
- Storage
- -40 °C...+70 °C
Total cooling output to DIN EN 14511
- L 35 L 35 at 50 Hz
- 0.55 kW ( 1,876BTU )
- L 35 L 35 at 60 Hz
- 0.66 kW ( 2,252BTU )
- L 35 L 50 at 50 Hz
- 0.33 kW ( 1,126BTU )
- L 35 L 50 at 60 Hz
- 0.4 kW ( 1,364BTU )
