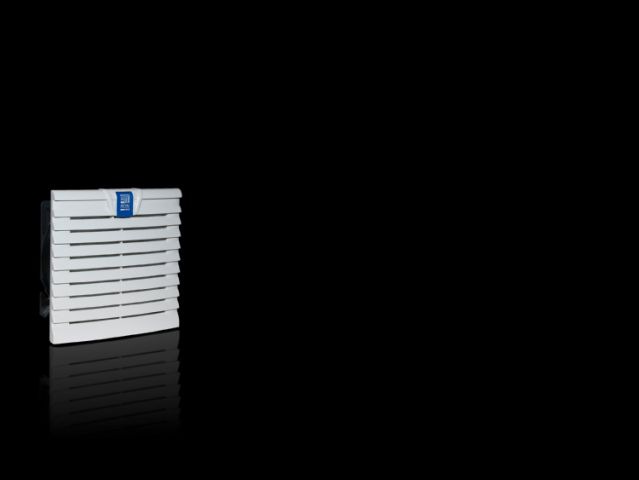

Rittal SK 3238.110
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
Next Day Delivery
Based In The USA
Description
Rittal SK 3238.110 is now available new, surplus, and used from Williams Automation.
If you need a specific firmware or series relating to this item, please call or email us with your request.
We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you require one.
Please note we offer UPS Next Day Air shipping for all orders. Please be sure to select next day shipping at checkout, and we will provide same-day shipment.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Air throughput (unimpeded air flow)
- At 50 Hz
- 55 m³/h ( 32.4cfm )
- At 60 Hz
- 66 m³/h ( 38.8cfm )
Air throughput with outlet filter, including standard filter mat (quantity x order number, throughput 50/60 Hz)
- 1 x 3238200
- 43/50 m³/h
- 2 x 3238200
- 46/56 m³/h
Dimensions
- Height
- 148.5 mm ( 5.8" )
- Width
- 148.5 mm ( 5.8" )
Noise pressure level
- At 50 Hz
- 46 dB(A)
- At 60 Hz
- 49 dB(A)
Rated current max.
- At 50 Hz
- 0.24 A
- At 60 Hz
- 0.22 A
Rated power Pel
- At 50 Hz
- 19 W
- At 60 Hz
- 18 W
Required mounting cut-out
- Height
- 124 mm ( 4.9" )
- Width
- 124 mm ( 4.9" )
Specifications
- Build depth
- 16 mm ( 0.63" )
- Color
- RAL 7035
- eCl@ss 6.0/6.1
- 27180716
- eCl@ss 8.0/8.1
- 27180716
- Fan
- Axial, shaded pole motor
- Installation depth
- 58.5 mm ( 2.3" )
- Life span at 50 Hz
- 68,200 h
- Life span at 60 Hz
- 68,200 h
- Miniature circuit-breaker/fuse
- 2 A
- Note
- Electrical connection of the filter fans 3237.XXX is by means of 2 individual wires at the device, for all other filter fans, by means of a spring-type terminal.
- Rated operating voltage
- 115 V, 1~, 50 Hz/60 Hz
- Supply includes
- Complete unit ready for connection, including filter mat
Temperature range
- Operation (environment)
- -15 °C...+55 °C
- Storage
- -30 °C...+70 °C
Williams Automation sells Rittal parts at huge savings. Search to find the part you need today. If you can't find what you are looking for please Request A Quote from us and we will provide a timely response. You can also call us at 803-761-7027. We look forward to working with you to assist in the best way we can for your industrial needs.
