Description

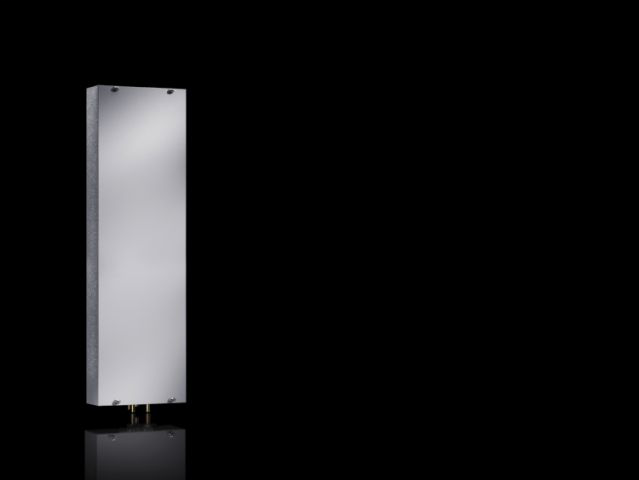

Output categories 375 – 5,000 W. For use in tough environments. Convenient mounting options and flexible water connection options. External mounting or full internal mounting possible.Air/Water Heat Exchangers wall-mounted
Rittal SK 3215.100 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Air throughput (unimpeded air flow)
- Internal circuit at 50 Hz
- 680 m³/h ( 400.2cfm )
- Internal circuit at 60 Hz
- 735 m³/h ( 432.6cfm )
Dimensions
- Depth
- 100 mm ( 3.9" )
- Height
- 950 mm ( 37" )
- Width
- 200 mm ( 7.9" )
Rated current max.
- At 50 Hz
- 0.38 A
- At 60 Hz
- 0.4 A
Rated power Pel
- At 50 Hz
- 83 W
- At 60 Hz
- 85 W
Refrigerant/cooling medium
- Cooling medium
- Water (see Internet for specifications)
Specifications
- Color
- RAL 7035
- Duty cycle
- 100 %
- eCl@ss 6.0/6.1
- 27180712
- eCl@ss 8.0/8.1
- 27180712
- Miniature circuit-breaker/fuse
- 4 A
- Note
- Integral non-return valve for version with e-Comfort controller
- Permissible operating pressure (p. max.)
- 1 bar - 10 bar
- Protection category IP to IEC 60 529
- IP 55
- Protection category NEMA
- UL Type 1
- Rated operating voltage
- 230 V, 1~, 50 Hz/60 Hz
- Temperature control
- Thermostat-controlled solenoid valve
- Temperature monitoring
- Internal thermostat, with change-over contact, switching load 16 A, setting range +20 °C ... +60 °C (factory setting +35 °C)
- Version
- Water-carrying parts copper/brass (Cu/CuZn)
- Water connections
- 1/2" connector sleeve
Temperature range
- Operation (environment)
- +1 °C...+70 °C
- Setting range
- +20 °C...+55 °C
- Water inlet
- +1 °C...+30 °C
Total cooling output
- L 35 W 10 at 200 l/h
- 1.25 kW ( 4,265BTU )
- L 35 W 10 at 400 l/h
- 1.3 kW ( 4,435BTU )
