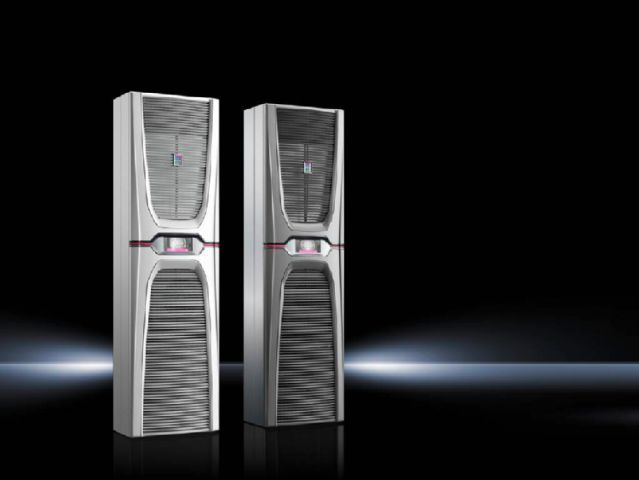

Rittal SK 3186.930
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Revolutionary energy efficiency through innovative hybrid technology. On average, 75% energy saved due to speed-regulated components and heat pipe technology. Suitable for international use due to a unique multi-voltage capability. Intuitive operation via touch display. Identical mounting cut-out (external mounting, partial internal mounting and full internal mounting) for four output categories.Wall-mounted cooling unit Blue e+
Rittal SK 3186.930 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Air throughput (unimpeded air flow)
- External circuit
- 1,250 m³/h ( 735.7cfm )
- Internal circuit
- 1,250 m³/h ( 735.7cfm )
Dimensions
- Depth
- 294 mm ( 12" )
- Height
- 1,600 mm ( 63" )
- Width
- 450 mm ( 18" )
Rated power Pel
- L 35 L 35 at 50 Hz
- 0.57 kW
- L 35 L 35 at 60 Hz
- 0.57 kW
- L 35 L 50 at 50 Hz
- 0.6 kW
- L 35 L 50 at 60 Hz
- 0.6 kW
Refrigerant/cooling medium
- CO₂ equivalent (CO₂e)
- 1.64 t
- Global Warming Potential (GWP)
- 1,430
- Quantity
- 1.15 kg ( 2.5lb. )
- Refrigerant
- R134a
Specifications
- Color
- RAL 7035
- eCl@ss 6.0/6.1
- 27180704
- eCl@ss 8.0/8.1
- 27180704
- Energy efficiency ratio (EER) 50/60 Hz L35 L35
- 3,5 / 3,5
- Material
- Carbon steel
- Options
- For remote monitoring and networking of cooling units and chillers, use the Blue e+ Generation IoT Interface, item number 3124.300. Increase machine availability and process safety by remote monitoring of device data, condition, and system messages.
- Permissible operating pressure (p. max.)
- 24 bar ( 348PSI )
- Protection category IP to IEC 60 529
- Internal circuit IP 55
- Rated output
- 0.73 kW
- Seasonal energy efficiency ratio (SEER) 50/60 Hz
- 8.1
- Temperature control
- e+ controller (factory setting +35 °C)
- Variant
- wall-mounted
Temperature range
- Compressor system active mode
- +3 °C...+60 °C
- Heat pipe active mode
- -20 °C...+45 °C
- Operation (environment)
- -20 °C...+60 °C
- Setting range
- +20 °C...+50 °C
- Storage
- -40 °C...+70 °C
Total cooling output to DIN EN 14511
- L 35 L 35 at 50 Hz
- 2 kW ( 6,824BTU )
- L 35 L 35 at 60 Hz
- 2 kW ( 6,824BTU )
- L 35 L 50 at 50 Hz
- 1.29 kW ( 4,401BTU )
- L 35 L 50 at 60 Hz
- 1.29 kW ( 4,401BTU )
