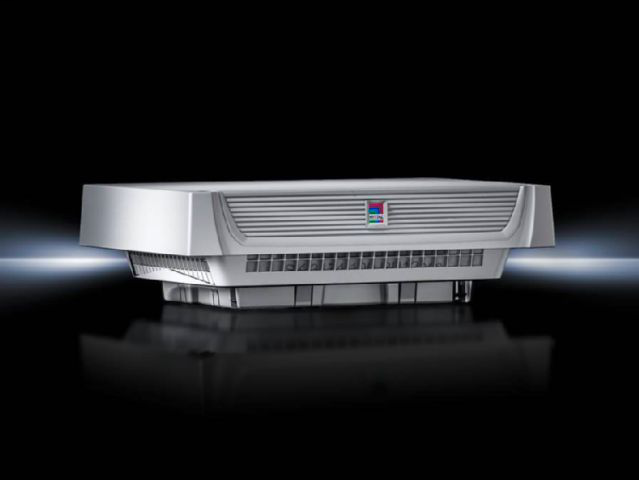

Rittal SK 3139.100
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
The new generation of roof-mounted fans is one system for all sizes: only one mounting cut-out is needed for all output categories. Air routing with minimal pressure losses ensures a high level of efficiency, while an innovative clamping attachment supports a high protection category of IP55.Roof-mounted fan, roof vent
Rittal SK 3139.100 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Dimensions
- Depth
- 400 mm ( 16" )
- Height
- 133 mm ( 5.2" )
- Width
- 400 mm ( 16" )
Noise pressure level
- At 50 Hz
- 52 dB(A)
- At 60 Hz
- 54 dB(A)
Rated current max.
- At 50 Hz
- 0.23 A
- At 60 Hz
- 0.27 A
Rated power Pel
- At 50 Hz
- 51 W
- At 60 Hz
- 62 W
Required mounting cut-out
- Depth
- 258 mm ( 10" )
- Width
- 258 mm ( 10" )
Specifications
- Air throughput (unimpeded air flow)
- 500 m³/h ( 294.3cfm )
- Color
- RAL 7035
- eCl@ss 6.0/6.1
- 27180716
- eCl@ss 8.0/8.1
- 27180716
- Fan
- Radial, capacitor motor
- Installation depth
- 34.6 mm
- Life span at 50 Hz
- 69,000 h
- Life span at 60 Hz
- 67,600 h
- Miniature circuit-breaker/fuse
- 3 A
- Note
- To improve energy efficiency and increase equipment service life, we recommend thermostats or temperature displays.
- Protection category NEMA
- NEMA 12
- Rated operating voltage
- 220 V - 240 V, 1~, 50 Hz/60 Hz
- Supply includes
- Complete unit ready for connection, including filter mat
- Unimpeded air flow (with filter mats)
- 417 m³/h / 446 m³/h
- Unimpeded air flow (without filter mats)
- 500 m³/h / 525 m³/h
Temperature range
- Operation (environment)
- -20 °C...+55 °C
- Storage
- -40 °C...+70 °C
