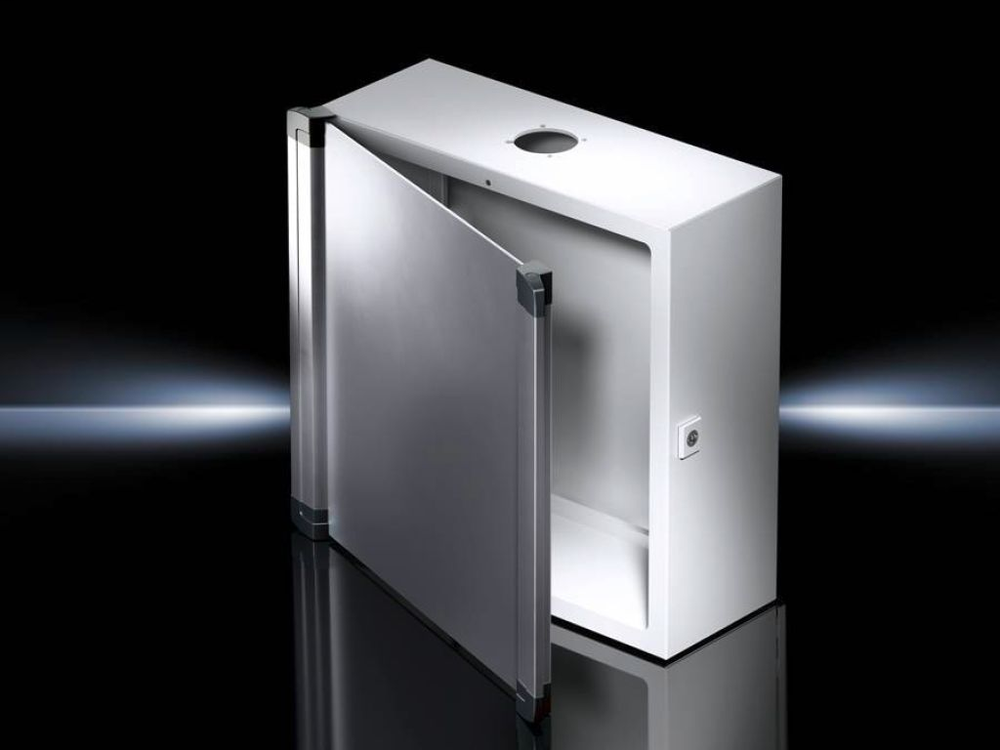

Rittal CP 6315.300
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Command panel with handle strips in contemporary design of sheet steel, with Ø 130 mm support arm cut-out to fit CP 60/120/180 support arm system, service access optionally from the front or rear, aluminum front panel easily removable for machining, protection category IP 55
Rittal CP 6315.300 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Color
- Cover caps
- Similar to RAL 7024
- Front panel
- Natural anodized.
- Handle strip
- Natural anodized
- Housing and door
- RAL 7035
Dimensions
- Depth
- 210 mm (8.3 ˝)
- Height
- 380 mm (15 ˝)
- Width
- 380 mm (15 ˝)
Material
- Cover caps
- Plastic
- Front panel
- Aluminum
- Handle strips
- Aluminum
- Housing and door
- Carbon steel
Note
- Lock systems for servicing access from the front
- 41 mm lock inserts, type C, lock cylinder, plastic handles and T-handles, type C
- Optional
- Support arm connection Ø 130 mm, preformed off-center in the reinforcement plate, easily drilled out
Product Description
- Customs tariff number
- 94032080
- EAN
- 4028177693951
- eCl@ss 5.1/5.1.4
- 27180505
- eCl@ss 6.0/6.1
- 27180505
- eCl@ss 7.0/7.1
- 27180505
- eCl@ss 8.0/8.1
- 27180505
- ETIM 5.0
- EC002504
- ETIM 6.0
- EC002504
- Lock Insert
- 3 mm double-bit
- Lock version
- Sickle-shaped locking nose
- No. of locks
- 1
- Note on Model No.:
- Compatible mounting plate 5050.453 with shipping bag 5050.507
- Packaging unit
- 1 pc(s).
- Protection category IP to IEC 60 529:
- IP 55
- Servicing access version
- From the front
- Weight/packaging unit
- 9.8 kg (21.6 lb.)
Surface Finish
- Front panel
- Natural anodized.
- Handle strip
- Natural anodized
- Housing and door
- Dipcoat primed, powder-coated on the outside, textured paint
