Remke 103Q0010M
Free Shipping
1 Year Warranty
A+ Rated On The BBB
Next Day Delivery
Based In The USA
Description

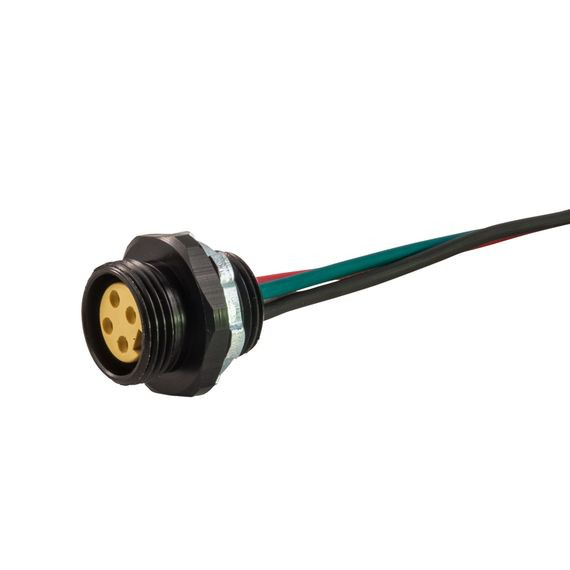

Remke 103Q0010M is now available new, surplus, and used from Williams Automation.
If you need a specific firmware or series relating to this item, please call or email us with your request.
We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you require one.
Please note we offer UPS Next Day Air shipping for all orders. Please be sure to select next day shipping at checkout, and we will provide same-day shipment.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Specifications
- Cable Code
- Auto
- Cable Strand
- 26 X #30
- Category
- Molded Connectors|Mini-Link Molded Connectors & Cordsets|Receptacles with 12" Pigtail Leads|2 to 6 Pole|Female Straight,Molded Connectors|All Molded Connectors,Cord Grips & Cable Connectors|Lighting Connectors
- Conductor Color 1
- Green
- Conductor Color 2
- Black
- Conductor Color 3
- White
- Connector Style
- MiniLink
- Contact Carrier Material
- PVC
- Contact Material
- Brass, Gold Plated Over Nickel"
- Contact Resistance (Micro Ohms)
- 5
- Contact Sleeve
- Stainless Steel
- Country of Origin
- United States
- cRU Specification
- E165657
- CSA Specification
- E165657
- Current Rating (amps)
- 13
- Insert Material
- PVC
- IP Rating
- IP67
- Length (in)
- 1.07
- Locknut Material
- Steel
- Maximum Knock Out Size (in)
- 0.906
- Maximum Operating Temperature (C)
- 105
- Maximum Operating Temperature (F)
- 221
- Minimum Operating Temperature (C)
- -20
- Minimum Operating Temperature (F)
- -4
- NEMA Rating
- 6P
- O-Ring Material
- Viton
- Poles
- 3
- Receptacle Configuration
- Female Straight
- Receptacle Lead Jacket Material
- PVC
- Receptacle Lead Length
- 1
- Shell Material
- Machined Aluminum
- Shell Plating
- Black Anodized
- Standard Package Quantity
- 1
- Tab Info
- ROHS,Coupling Nut Mtl,CRT,Cable Cross,IP Ratings,TL APP,Cable Jacket Mtl,Knockout Dim
- Thread 1
- 7/8-16 UNS
- Thread 2
- 1/2-14 NPT
- UNSPC
- 32151905
- UPC
- 785411429427
- Voltage Rating (AC)
- 600
- Voltage Rating (DC)
- 600
- Wire Gauge
- 16 AWG
- Wiring Color Code
- Auto CC
Williams Automation sells Remke parts at huge savings. Search to find the part you need today. If you can't find what you are looking for please Request A Quote from us and we will provide a timely response. You can also call us at 803-761-7027. We look forward to working with you to assist in the best way we can for your industrial needs.
