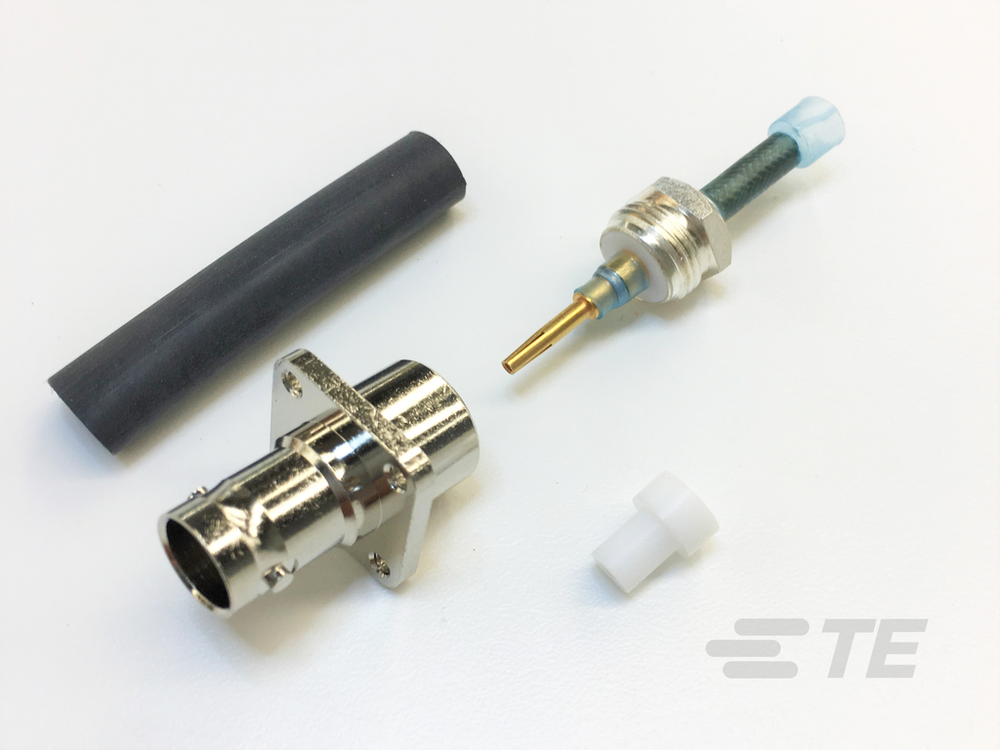

Raychem PBD-50-M-01-MSC
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Raychem PBD-50-M-01-MSC is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Specifications
- Body Material
- Brass
- Body Material Finish
- Bright
- Body Plating Material
- Electroless Nickel
- Cable Connector Orientation
- Right Angle
- Circuit Application
- Signal
- Compatible With RF Cable Type
- Coaxial
- Connector & Contact Terminates To
- Wire & Cable
- Connector Mounting Type
- Cable Mount (Free-Hanging)
- Connector Seal Type
- Interfacial Seal
- Connector System
- Wire-to-Device
- Contact Current Rating (Max)
- 3 A
- Detent
- With
- Dielectric Material
- TFE
- EMI & RFI Protection Type
- Shielding
- Impedance
- 50 Ω
- Number of Coaxial Contacts
- 1
- Number of Positions
- 1
- Operating Frequency
- 0 – 4 GHz
- Operating Temperature Range
- -55 – 135 °C[-67 – 275 °F]
- Packaging Method
- Bag & Box
- RF Connector Center Contact Material
- Brass
- RF Connector Center Contact Plating Material
- Gold
- RF Connector Center Contact Underplating Material
- Nickel
- RF Connector Coupling Mechanism
- Bayonet
- RF Connector Mated Outer Diameter (Approximate)
- 12.7 mm[.5 in]
- RF Connector Style
- Plug
- RF Contact Captivation Method
- Mechanical
- RF Interface
- BNC
- Sealable
- Yes
- Termination Method to Wire & Cable
- Solder
