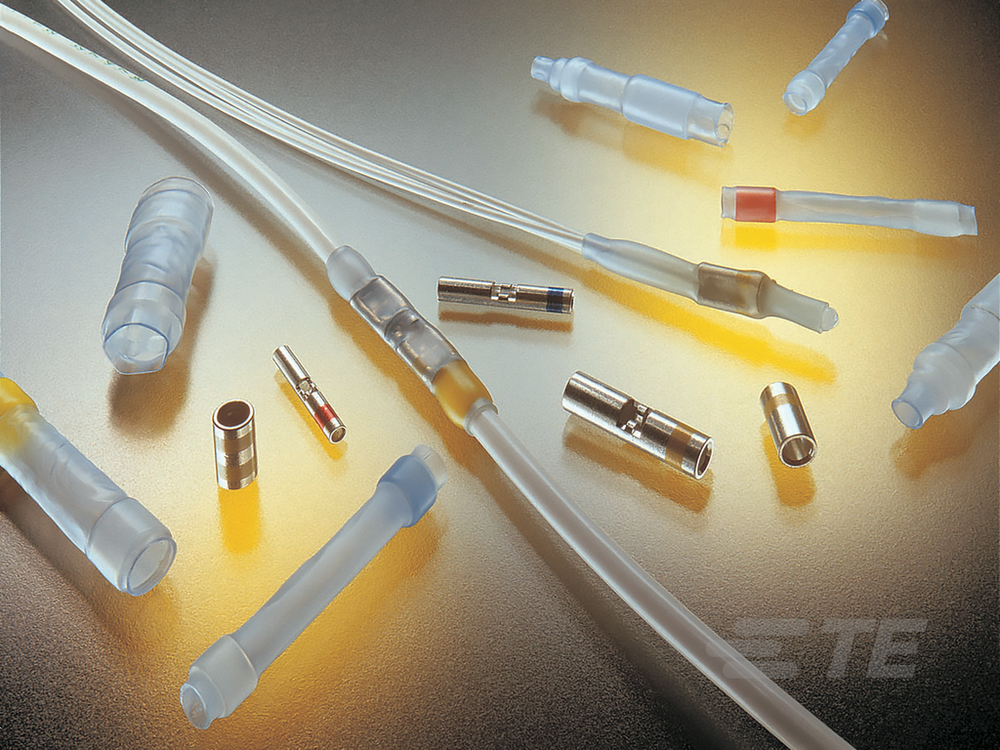

Raychem D-436-36CS2651
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Raychem D-436-36CS2651 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Specifications
- Accessory Type
- Splice
- Barrel Color
- Red
- Barrel Inside Diameter
- 1.2 mm[.048 in]
- Barrel Inside Diameter (Min)
- 2.46 mm[.097 in]
- Barrel Type
- Closed Barrel
- Cable Temperature Rating
- 135 °C
- Contact Plating Material
- Tin
- Fluid Resistance
- Immersion
- Government Qualified
- Yes
- Heavy Duty
- No
- High Temperature Rating
- 150 °C
- Housing Material
- Polyvinylidene
- Inside Diameter (Recovered)
- 1.778 mm[.069 in]
- Insulated
- Yes
- Insulation Material
- Heat-shrinkable, Radiation Cross-Linked Modified Polyvinylidene Fluoride
- Insulation Sleeve Material
- Polyvinylidene Fluoride
- Number of Conductors
- 2
- Number of Serrations
- 0
- Operating Temperature Range
- -55 – 150 °C[-67 – 302 °F]
- Overall Length
- 29.21 mm[1.15 in]
- Packaging Method
- Bag/Box
- Packaging Quantity
- 100
- Plating Material
- Tin
- Product Type
- Splice
- Sealable
- Yes
- Serrated
- No
- Splice Features
- Splice Kit
- Splice Material
- Tin-Plated Copper
- Splice Type
- In-Line Splice
- Support Style
- Non-Insulation Support
- Terminal & Splice Type
- Splice
- Termination Method
- Crimp
- Wire/Cable Type
- Insulated Wire
- Wire Size
- 304 – 1216 CMA
